Basic Info.
Model NO.
M420
Warranty
1 Year
Number of Blades
4 Pieces
Incoming Material Size
230*200
Motor Power
7.5kw
Diesel Horsepower
15
Colour
Support Customization
Transport Package
Wooden Box
Specification
180*150
Trademark
Fude
Origin
Henan, China
HS Code
8474209000
Production Capacity
1t/H
Packaging & Delivery
Package Size
120.00cm * 100.00cm * 100.00cm
Package Gross Weight
100.000kg
Product Description

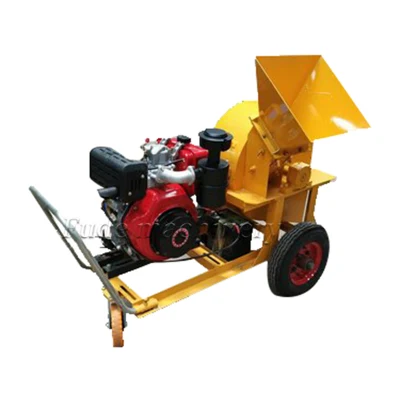

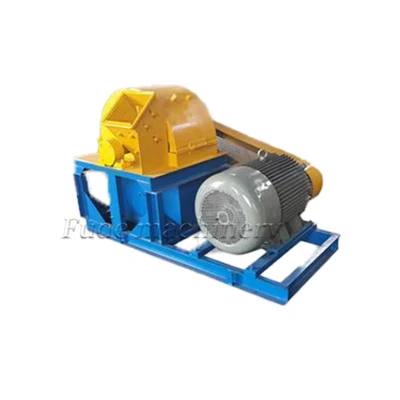

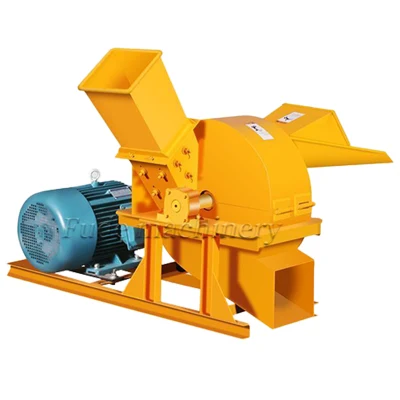

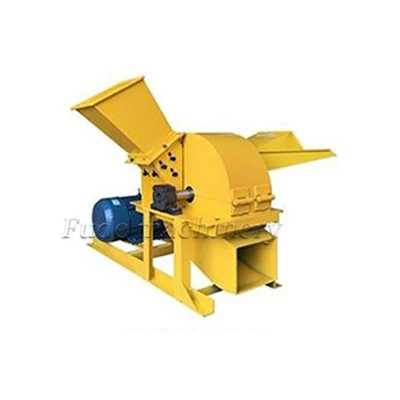

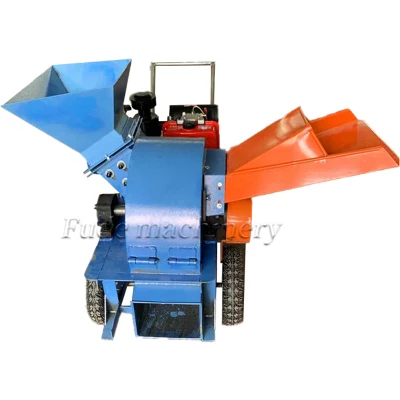

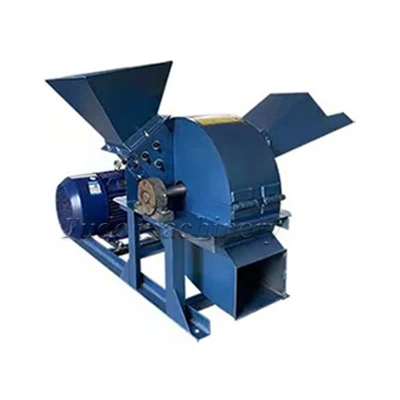

Wood crusher is a new type of ideal equipment for producing sawdust. It has added a side feed port and slicing device to the original foundation, which can convert larger diameter round wood, square wood, leftover materials High fiber stem raw materials such as veneer, building formwork, corn cob, bark, leaves, branches, etc. are processed into sawdust in one go, which has the advantages of low investment, low energy consumption, high productivity, and good economic benefits.
It has the advantages of convenient use and maintenance, and is widely used as a raw material for biomass particles, paper making, machine made charcoal, edible fungi, creative boards, and sawn high-density boards.
It has the advantages of convenient use and maintenance, and is widely used as a raw material for biomass particles, paper making, machine made charcoal, edible fungi, creative boards, and sawn high-density boards.
The branch crusher mainly consists of a chip cutting device, a crushing device, and a fan; Chip cutting device organism (divided into upper body, middle body, and lower body), rotor, and cutter head; The crushing device consists of a crushing chamber and a crushing knife (consisting of a 7-type knife, a 1-type knife, and a centrifugal knife); The fan consists of a fan, a dust collector, and a dust collector.
The tree crusher has various advantages such as small size, small land occupation, low investment, high return, low energy consumption, high efficiency, easy to use, and maintenance. It is an ideal equipment for developing edible mushroom production and leading to the path of wealth.
1. Even and effective crushing of materials in the crushing chamber can achieve sufficient and effective coarse and fine crushing
2. High yield, low energy consumption, high efficiency, and uniform discharge.
3. When using this device, it has low noise, simple operation, and convenient maintenance
4. Reasonable structure, convenient movement, automatic feeding, sturdy and reliable features
The tree crusher has various advantages such as small size, small land occupation, low investment, high return, low energy consumption, high efficiency, easy to use, and maintenance. It is an ideal equipment for developing edible mushroom production and leading to the path of wealth.
1. Even and effective crushing of materials in the crushing chamber can achieve sufficient and effective coarse and fine crushing
2. High yield, low energy consumption, high efficiency, and uniform discharge.
3. When using this device, it has low noise, simple operation, and convenient maintenance
4. Reasonable structure, convenient movement, automatic feeding, sturdy and reliable features
Application field:
The wood crusher is mainly used to crush various wood fiber materials and crops such as waste boards, wood chips, wood, wood blocks, branches, leaves, bark, furniture scraps, wood bran, bamboo powder, chestnut skin powder, square wood, corn cob, straw, etc
| Motor power | 7.5-11kw | Blade size | 90*60*10 |
| Incoming material size | 180*150 | Number of blades | 4 pieces |
The wood pulverizer produced by our factory integrates slicing and crushing, and can cut wood with a diameter of 1-20 centimeters. It can also be used for cutting and crushing fiber like materials such as bamboo, straw, mushroom, garden branches, corn cobs, etc.It is a new type of production equipment for wood crushing. This wood grinder is particularly suitable for processing wood chips in edible mushroom culture media, and can also be used as raw materials for the production of particleboard and sawdust board high-density boards.
1. Configure the appropriate power cord and control switch according to the power configuration of the device, connect the power supply, and check if the motor direction is correct.
2. The equipment should be installed on a horizontal concrete foundation and fixed with anchor bolts.
3. When installing, it should be noted that the main engine pulley and motor pulley are pulled in a straight line using a triangular belt
4. After installation, check whether the bolts in each part are loose and whether the main engine compartment door is fastened. If there is any looseness, please tighten it
5. It is strictly prohibited to throw wood with stones and nails into the machine to prevent damage to the knives and internal parts.
6. Pay attention to checking the hammer bolts. If any looseness is found, tighten them immediately. When the hammer and bolts are severely worn, they should be replaced
7. After the inspection is completed, conduct a no-load test run, and production can proceed once the test run is normal.
8. When the particles cannot reach the desired size, switch to a different pore size sieve.
9. When replacing the cutting tool, the blade extends 2-4mm beyond the flat surface of the cutting disc, and then tighten the bolt. If the pressure bolt thread is found to be worn, it should be replaced immediately to prevent damage to the sliding disc nut.
FAQ
Q:Are you a trading company or a manufacturing factory?
A:We are a factory.
Q:What is your delivery time?
A:If the goods are in stock, it usually takes 7-10 days.
If the goods are out of stock, it will take 15 to 30 days, calculated by quantity.
Q:What is your payment method?
A:30% of the total price should be paid in T/T as the down payment; 70% of the remaining payment should be paid in T/T before delivery.
Q:Do you provide technical guidance?
A:Yes, we will provide you with professional advice on the selection of models and the operation of equipment.
