Basic Info.
Model NO.
DO1625
Condition
New
Control
Automatic
Application
Paper, Plastic, Leather, Fabric
Power Source
Electric
Layout
Vertical
Working Area
1600*2500mm
Method of Fixing Material
Vacuum Adsorption
Transmission
High Precision Helical Rack
Driving
Japan Panasonic Drive + Precision Reducer
Crossbeam
Aviation Aluminum Alloy with Mold Extruded
Transport Package
Wood Crate
Specification
1625
Trademark
FLYING
Origin
China
HS Code
84411000
Production Capacity
100PCS/Month
Packaging & Delivery
Package Size
228.00cm * 300.00cm * 160.00cm
Package Gross Weight
1300.000kg
Product Description

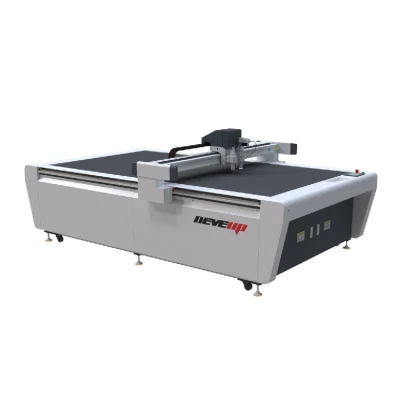

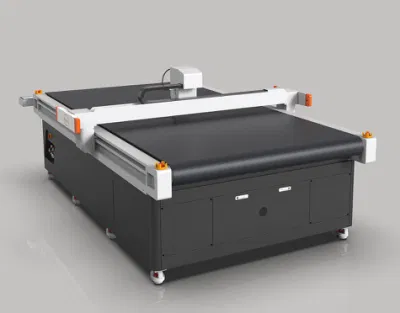

CNC Oscillating Knife Blade Cutter Digital Kraft Paper Corrugated Carton Honeycomb Cardboard PVC Box Cutting Making Machine for Packing Package
Introductions:
Are you still make the mold to cut the corrugated carton box or shapes on honeycomb paper paper? Does it take a long time and big cost to open a mold? Have you ever lost some orders because to make customers wait a long time for a sample? Then Deveup carton cardboard box digital cutting machine can help you to solve this problem.
Introductions:
What is carton/cardboard box digital knife cutting and making machine? The cardboard cutting machine uses the high frequency oscillating knife to cut off the cardboard. Corrugated carton box making machine is easy to learn even you are the first time to use the machine. You can just download the CAD design to the machine, after machine reading the design, it will cut automaticlly. This greatly saves the time of opening the mold, and can make samples for customers faster, thus helping you to get more orders quickly.
Deveup oscillating knife cutting technology adopts intelligent modular cutting technology, equipped with fast cutting tools, creasing tools, and beveling tools, which completely changes the shortcomings of traditional carton processing methods. The carton cardboard corrugated paper box making machine has the characteristics of better cutting quality, intelligence and flexibility, and lower production costs. It can be widely used for cutting cartons, cardboard, color boxes, corrugated paper, grayboard paper, honeycomb paper etc., and can replace traditional cartons, color boxes, paper display racks, and other manual development designs and proofing work, shortening the lead time.
Applicable to cardboard, gray cardboard, KT board, Chevron board, honeycomb board, car sticker, light sheet, PP adhesive, inkjet cloth, flag cloth, various corrugated cardboard, EPE foam, EVA, PVC board, acrylic board . .
Advantages:
It adopts computer control, supports input of electronic pattern, one-key cutting, simple operation, and can be configured with automatic board feeding system, replacing 3-6 workers.
1. The oscillating knife cutting machine is suitable for cutting a variety of packaging materials: it can cut different materials (corrugated paper, honeycomb board, cardboard, plastic board gray board color, composite paper, gasket, leather, cloth, etc.).
2. A variety of cutting functions: it can press out perfect folding lines on corrugated paper, cardboard, plastic board, and other materials, and can also be used for folding after half-cutting corrugated paper and cardboard, dotted line cutting, and other functions.
3. Can be equipped with a variety of cutting tools - cutting, creasing, beveling, and marking tools, which can complete line drawing, drawing, text annotation, indentation, half-knife cutting, and full-knife cutting at one time.
4. The processing method is more flexible and intelligent. It can be used for corrugated cardboard cutting, carton proofing, color box proofing, plastic box proofing, POP paper display rack paper shelf proofing, small batch production, shortening carton development, and delivery time; to meet the small batch, multi-style order production goals.
Tools Instrodctions:
1. Oscillating knife: to cut off or half cut the cardboard, corrugated cardboard,honeycomb cardboard, gray board, etc.
2. Creasing wheel: Creasing wheel tool used to press the marks for folding the carton, also can process easy tear off carton dotted line cutting.
3. V cut tool: for slotting and bevel cutting on honeycomb cardboard or corrugated cardboard.
4. CCD Camera: for read patterns on the printed cardboard, and then machine cut along the edge.
5. Pneumatic knife tool for cutting thick or hard cardboard, foam board, etc. More powerful.
Specifications:
| Model | DO1625S (Support customization) | |||
| Working Size | 1600mm x 2500mm | |||
| Operation properties | Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime | |||
| Safety device | Infrared adopted; sensitive response; safe and reliable | |||
| Multi-function tool | Oscillating knife full cut, half-cut cutting, marking/printing tool, cursor positioning, camera positioning edge cutting tool, V-groove various angle cutting tool | |||
| Applicable materials | Cardboard, gray cardboard, KT board, Chevron board, honeycomb board, car sticker, light sheet, PP adhesive, inkjet cloth, flag cloth, various corrugated cardboard, EPE foam, EVA, PVC board, acrylic board, etc. | |||
| Transmission system | High precision linear guide, meshing transmission gear and rack structure, Japanese Panasonic high performance servo drive motors + precision reducer | |||
| Fixed mode | Vacuum adsorption | |||
| Precision | ±0.01mm | |||
| Cutting speed | 0-1500mm/s(Set according to material) | |||
| Cutting thickness | Standard cutting height: ≤50mm, customizable maximum cutting height 110mm | |||
| Support file format | DWG, AI,PLT,DXF | |||
| Rated power | 11KW | |||
| Rated voltage | 380V±10%/220V±10% Optional | |||
| Control System | Multilingual languages LCD touch panel | |||

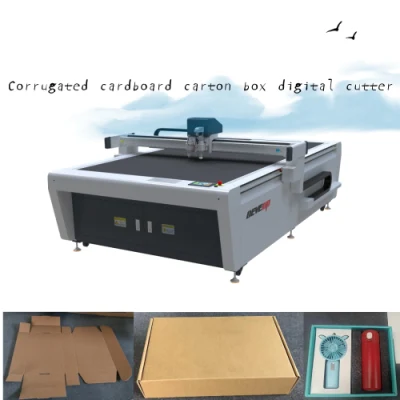

Applications of cardboard cutting machine:
As a professional supplier of CNC oscillating knife cutting machines, we have been committed to providing efficient cutting solutions for the carton packaging industry for many years. The carton vibration knife cutting machine developed and produced adopts high-power vibration knife cutting technology, which is specially designed for the carton packaging industry and can meet the mass production needs of packaging companies.
Our carton oscillating knife cutting machine has 5 advantages:
1. Simultaneously complete a variety of carton processing processes: our carton numerical control vibrating knife cutting machine has stable mechanical performance and can be equipped with grooving cutters, oscillating cutters and creasing tools to meet the different technological needs of carton cutting, grooving and creasing.
2. High processing accuracy: The high-performance cutter controller is equipped with high-quality Japanese Panasonic servo motors and precise drivers. Relying on stable cutting performance, low operating cost and intelligent production process, it ensures the rapid profitability of customers and realizes standard, fast, efficient and intelligent carton processing technology.
3. The processing method is more flexible: without any molds, it can meet the processing of any carton style. Widely used in the design and proofing of packaging cartons, reducing design costs, shortening design time, and meeting customers' production of multiple styles and small batch orders.
4. To meet the processing needs of a variety of materials: corrugated cardboard, cardboard, honeycomb cardboard, foam board, plastic board, EVA, KT board and other packaging materials can be cut.
5. Intelligent cutting equipment helps customers improve their competitiveness: we can improve your design technology, enhance design concepts, and help customers better complete the development of new styles, ahead of their peers.
More Applications:
Machine Details:
Colorful & touch control operation panel, with more intuitive operation interface, which can directly input processing data, set processing speed and knife depth, support screen automatic protection, and protect processing data,feature-rich and user-friendly operation

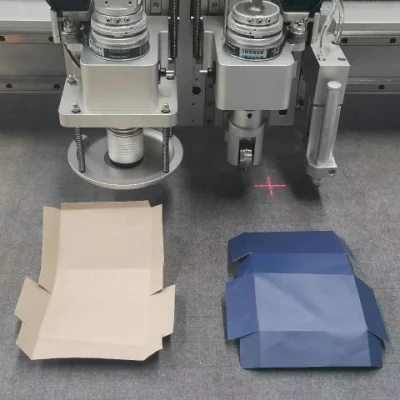

A variety of tool combinations, equipped with intelligent tools interchange system, can cut different materials to achieve different tasks, and multiple tool heads can work individually or in concert. Powerful function, fast running speed, high processing accuracy, truly multi-purpose machine.
We insist on using 6mm thick, 60mm diameter steel pipes, and adding load-bearing brackets in the X and Y axis directions every 80-100mm span. We use 60mm thick cast iron in the frame and guide rail mounting position and use CNC gantry machining center for planing and milling. Our bed has the characteristics of heavy weight, good load-bearing capacity and high hardness, which ensures the accuracy and stability of the oscillating knife cutting machine at high speed. We guarantee that the machine will not be deformed in 10 years.
The beam adopts the extrusion process of aviation aluminum alloy die, which ensures the stability and high precision of machine operation at high speed, especially suitable for some industries that require high precision, such as sealing gaskets
Imported famous brand helical gear rack, quenching and hardening treatment. High precision, strong load-bearing capacity, smooth running at high speed and less noise.
Taiwan PMI 20mm high precision linear guide, high positioning accuracy, high repeatability. Low friction resistance, high rigidity four-way load design, high speed and long time operation to maintain high precision
Safety protection device. Highly sensitive collision avoidance system and red light brake system. When the machine is cutting at high speed, it can effectively protect safety of the operator.
The worktable is a high precision and strength aluminum honeycomb vacuum absorption worktable. Cooperate with high power vacuum pump to fix the material.
Imported Holland 4mm Felt
To protect the vacuum table and blades when machine working. Cut resistance, good softness, will not scratch the product, non-slip
High power vacuum pump to fix material. The vacuum pump runs automatically when the machine is working.
Tips:
What are the applications of Deveup Knife Cutting Machine in cardboard box industry?
Deveup cnc oscillating knife cutting machine can cut honeycomb cardboard, corrugated cardboard, gray paper board, cardboard, PVC hollow board and other cardboard, can make packaging cartons, cardboard crafts, packaging liner, color boxes, photo frames and other products.
Deveup cnc oscillating knife cutting machine is installed with oscillating cutting knife, bevel(V-cut tool/Grooving/slotting tool) knife, pressure wheel, CCD automatic edge-seeking camera and other supporting tools, when cutting cartons, the pressure wheel can be pressed folding marks, easy to fold into cartons.
When cutting thicker cardboard, the beveling knife can open V-groove to facilitate cardboard folding. The vibrating knife is used to cut the outer contour.
Carton vibrating knife cutting machine is a CNC cutting machine, only need to import the CAD drawings into the machine software can automatically cut, according to the CAD drawings in the color of the automatic selection of the working knife head, do not need too much human intervention.
Packaging cartons are sampled before production to avoid problems in mass production. Vibrating knife cardboard cutting machine does not need to make a knife mold, according to CAD drawings automatically cut, saving the time and cost of opening the mold. It is also very easy to modify the design drawings. Nowadays, there are more and more customized products, and if all of them adopt the way of opening the knife mold, it will waste a lot of time and cost.
Deveup cnc vibrating knife cutting machine is very suitable for customized processing, small batch production, sampling and other work, so that factories can easily respond to a variety of orders. The oscillating knife cutting machine utilizes sturdy and sharp tungsten steel blade cutting, blade high frequency up and down vibration, control system to control the movement of the cutter head, to achieve a variety of shapes of processing, cutting speed, high precision, cutting effect is good.
Cutting Tools:
FAQ:
1. Q: Are you a factory or Trading company?
A: We are a professional oscillating knife cutting machine production factory, we produce high-end quality CNC cutting machines.
2. Q: Can you customize the machine according to my needs?
A: Yes, we accept the customized machine, our company has an experienced professional design team, we can give you our professional suggestions according to your requirements and design a cost-effective machine for your needs.
3. Q: What is the difference between this knife cutting product and your laser cutting machine?
A: a. This knife cutting machine cut with vibrating blades, no laser, no pollution, and create a good working environment for workers.
b. Blade cutting can ensure the edge of material cutting smooth without burning.
4. Q: What's the warranty policy?
A:Standard warranty is 36 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved.
5. Q: Can I still get support after warranty?
A: Of course, We offers life-time technology support, you can always counting on our service.
6. Q: This is the first time I buy machine from China, what can you do for me?
A: We supply DDU service for the new buyers. This service means we will deliver machine directly to your factory.
Why Choose Us?
We provide customers with automated production equipment that replaces skilled workers and reduces labor costs.
We equip our machines with automated typesetting software that provides customers with an optimal layout plan, maximizes material utilization and avoids wasted material.
Our equipment is easy to operate. The digitalized processing transforms "old-fashioned" repetitive work (typesetting, changing size, etc.) into one operation, making it more "user-friendly," reducing employee turnover and its negative effects on production.Digital production enables a seamless cooperation between machine and man that has never before been possible.
The efficiency of our machines is unparalleled and the supply cycle is shortened, which makes our customers become the leaders once again in a highly competitive industry.
