Eastontech Ew-100s Paper Roll to Sheet Cutting Machine Cut Paper Film Foil Foam Cutter Heat Shrinkge Tube Cutters
Eastontech Ew-100s Paper Roll to Sheet Cutting Machine Cut Paper Film Foil Foam Cutter Heat Shrinkge Tube Cutters - Factory-direct cutting solutions for various materials.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
EW-100S
Driven Type
Electric
Wire Diameter
1-10mm
Machine Weight
35kg
Diameter Increments
0.01 mm
Length Accuracy
0.002 * Lmm
Capacity
7200-9000PCS./Min (Depending on Wire Material)
Cutting Length
1-99999mm
Noise Level
< 70 dB(a)
Display
Touch Screen
Blade Material
Imported Switzerland Tungsten Steel
After-Sales
1 Year Guarantee
Package
Export Carton Case
Trademark
EASTONTECH
HS Code
8477800000

Packaging & Delivery

Package Size
49.00cm * 57.00cm * 45.00cm
Package Gross Weight
38.000kg
Lead Time
10 days (1 - 1 Sets)
To be negotiated ( > 1 Sets)

Product Description

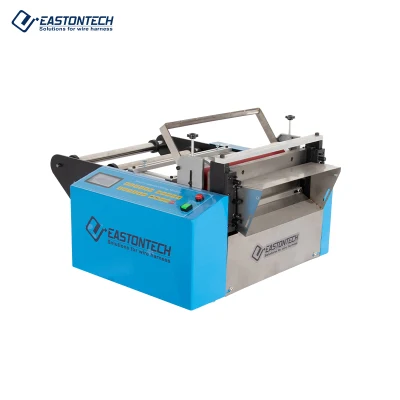

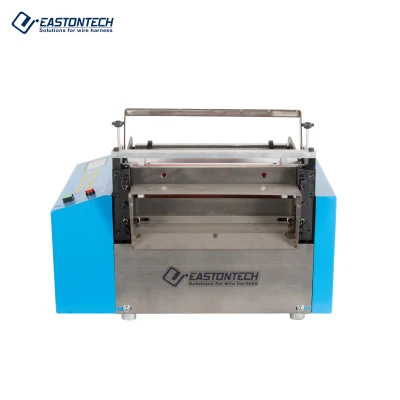

Eastontech Ew-100s Paper Roll to Sheet Cutting Machine Cut Paper Film Foil Foam Cutter Heat Shrinkge Tube Cutters
Feature
1.EW-100S - EW-1500S is designed for cutting wide range of  industrials materials.

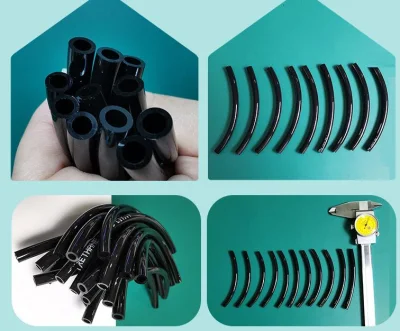

2.Various tube, pipe, hose, fabric, paper, film, sheet, strip, band, foam, foil, wire, cable and rope are within the capability.
3.Equipped with material rest, on which the material can be placed to ensure the steady feeding and cutting process.
4.Equipped with 4 feeding strips. The gap between the strips can be adjusted according to the material width, which also allows maximum 3 production lines.
5.SKD-11 material is selected as the balde material, and the average lifetime is up to 18 months.
Contact us for more details.
Eastontech Ew-100s Paper Roll to Sheet Cutting Machine Cut Paper Film Foil Foam Cutter Heat Shrinkge Tube CuttersEastontech Ew-100s Paper Roll to Sheet Cutting Machine Cut Paper Film Foil Foam Cutter Heat Shrinkge Tube Cutters

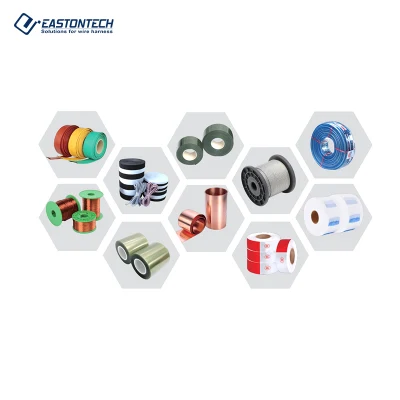

Applicable material

Wide rang of industrial materials

Cutting length

1 - 9999 mm

Cutting length increment

1 mm

Cutting tolerance

0.1 mm

Productivity

7200 - 9000 pcs./h

Control mode

ARM processor

Motor

AC motor

Power supply

110, 220 V (50 - 60 Hz)



Model

Maximum material width

EW-100S

80 mm

EW-160S

140 mm

EW-200S

180 mm

EW-300S

280 mm

EW-400S

380 mm

EW-500S

480 mm

EW-600S

580 mm

EW-700S

680 mm

EW-800S

780 mm

EW-900S

880 mm

EW-1000S

980 mm

EW-1100S

1080 mm

EW-1200S

1180 mm

EW-1300S

1280 mm

EW-1400S

1380 mm

EW-1500S

1480 mm
Eastontech Ew-100s Paper Roll to Sheet Cutting Machine Cut Paper Film Foil Foam Cutter Heat Shrinkge Tube Cutters Eastontech Ew-100s Paper Roll to Sheet Cutting Machine Cut Paper Film Foil Foam Cutter Heat Shrinkge Tube Cutters
Company Profile

Eastontech Ew-100s Paper Roll to Sheet Cutting Machine Cut Paper Film Foil Foam Cutter Heat Shrinkge Tube CuttersEastontech Ew-100s Paper Roll to Sheet Cutting Machine Cut Paper Film Foil Foam Cutter Heat Shrinkge Tube CuttersEastontech Ew-100s Paper Roll to Sheet Cutting Machine Cut Paper Film Foil Foam Cutter Heat Shrinkge Tube CuttersEastontech Ew-100s Paper Roll to Sheet Cutting Machine Cut Paper Film Foil Foam Cutter Heat Shrinkge Tube CuttersEastontech Ew-100s Paper Roll to Sheet Cutting Machine Cut Paper Film Foil Foam Cutter Heat Shrinkge Tube Cutters

FAQ

Question 1: What machines does the EASTONTECH mainly produce?
Answer 1: We mainly produce machines for wire harness processing.

Question 2: What are the main functions of your wire harness processing machine?
Answer2: Our machine can complete cutting, stripping, crimping, tinning, soldering, binding&tying, etc.

Question 3: What's the packaging and shipping?
Answer3: Package: Standard export carton & wooden case.

Shipping:
By express: DHL, UPS, FedEx
We will search for the most economical and reliable shipping company to transport the goods safely.
By air: when your order is more than 100kg which will be more economical than express
By sea: when your order is a large quantity, we can help you to deliver the goods by sea
Port: Shanghai / Ningbo/ Shenzhen

Question 4: How about after-service?
Answer4: EASTONTECH parts are free to change if worn out within 1 year, provided the delivery fee is paid. Technical support is available during your daily maintenance.
We promise to offer life-long maintenance for the products we sold.
