Basic Info.
Model NO.
FM1325 4 axis
Customized
Customized
Condition
New
Color
Customized
Working Area
1300*2500*500mm
Table
T-Slot / Vacuum
Structure
Welded Steel Tube Structure
Spindle
5.5kw Water Cooling Spindle
Control System
DSP/ Nc Studio
Inverter
Fuling/Delta Inverter
Motor and Driver
Leadshine Stepper Motor and Driver
X Y Axis Transmission
Xinyue Helical Rack and Gear, Hiwin Rail
Z Axis Transmission
Taiwan Tbi Ball Screw, Hiiwn Square Rail
Transport Package
Plywood
Specification
CE, SGS, ISO
Trademark
FIRMCNC
Origin
Jinan, China
HS Code
8465990000
Production Capacity
30 Sets/Month
Product Description

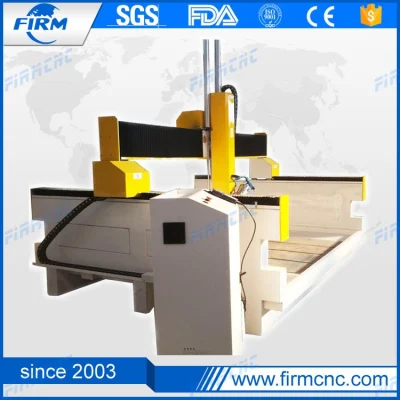

Professional eva foam cutting machine 4 axis cnc router
Product Description

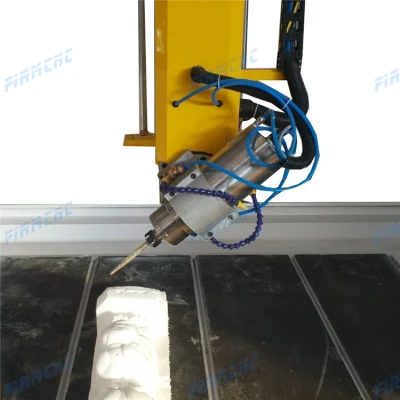

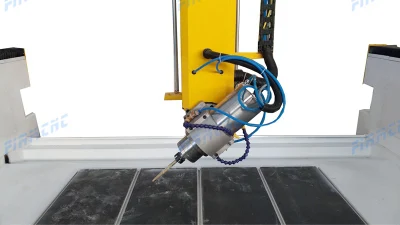

CNC router is with an extra heavy duty gantry and machine table for maximum rigidity and strength to provide high speed machining in all 4 axis
Application of eva foam cutting machine
mould making, machining moulds in wood, resin tooling board, EPS and composites, trimming of vacuum formed mouldings, plastic fabrication, GRP machining,
props and model making, profiling, solid surface machining and contouring, various large metalloid mould, especially suitable for automotive foam mold,
wooden ship model, wooden model aviation, rail wooden mold, wooden mold train.Instrument industry: 3-d surface engraving and shape cutting of large-scale instruments.
Technical parameters of eva foam cutting machine
Main allocation and parts pictures of eva foam cutting machine
Taiwan SYNETC control system
Taiwan Delta inverter
Italy 9KW HSD air cooling spindle
Japan YASKAWA servo motor and driver
Taiwan TBI ball screw tansmission
Turntable tool changer
Gear reducer
5.5KW vacuum pump
Tool setting gauge
Centre automatic lubrecation system
Control box
Germany Schneider electrical component
Samples
Company Information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on cnc router appliances.
2016 Version Shanghai International CNC Exhibition photos,some customers paid the deposit for us right away when we finished the test on the scene.
Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information
Our Services
Perfect afterafter Services
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
We would provide English Version working manual.
FAQ
1.Can you recommend a 4 axis cnc router to me ?
Yes, In order to give you a suitable 4 axis cnc router,pls tell me the max working area, materials for processing and the thickness
for materials processing engraving or cutting. Then perfect suitable plasma machine will be recommended
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?
Contact us
JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330 Fax : 0086-0531-69986330
Website: http://firmcnc.en.made-in-china.com
firmcnc.en.made-in-china.com
Cell phone: +86-13954117091
Product Description
CNC router is with an extra heavy duty gantry and machine table for maximum rigidity and strength to provide high speed machining in all 4 axis
Application of eva foam cutting machine
mould making, machining moulds in wood, resin tooling board, EPS and composites, trimming of vacuum formed mouldings, plastic fabrication, GRP machining,
props and model making, profiling, solid surface machining and contouring, various large metalloid mould, especially suitable for automotive foam mold,
wooden ship model, wooden model aviation, rail wooden mold, wooden mold train.Instrument industry: 3-d surface engraving and shape cutting of large-scale instruments.
Technical parameters of eva foam cutting machine
| Name | Specification |
| Model | FM1530-4 axis |
| Table size | 1500* 3000mm |
| Spindle | 5.5kw/ 7.5kw/ 9.0kw water cooling or air cooling spindle |
| Tool Holder | HSK63F |
| Motor | Yaskawa Servo motor and driver |
| Moving mod | Table moving |
| product fixed form | T slot table |
| Tool magazine | Carrousel tool tool magazine (8positions) |
| X, Y, Z Travelling Potioning Accuracy | ±0.03/300mm |
| X,Y, Z Travelling Repositioning Accuracy | ±0.05mm |
| Frame | Cast steel |
| X, Y structure | rack and pinion drive, THK rail linear bearing from Japan |
| Max Rapid Travel Rate | 25,000mm/min |
| Max working speed | 15,000mm/min |
| Working voltage | AC380V/50Hz |
| Command languages | G code,M Code, F/S |
| Control system | Syntec, OSAI, Siemens |
| Software Optional | MasterCAM, Powermill, AlphaCAM i.e |
Main allocation and parts pictures of eva foam cutting machine
Taiwan SYNETC control system
Taiwan Delta inverter
Italy 9KW HSD air cooling spindle
Japan YASKAWA servo motor and driver
Taiwan TBI ball screw tansmission
Turntable tool changer
Gear reducer
5.5KW vacuum pump
Tool setting gauge
Centre automatic lubrecation system
Control box
Germany Schneider electrical component
Samples
