Basic Info.
Model NO.
Scallop Edge Band Knife 04
Function
Cutting
Shape
Band Saw Blade
Coating
Uncoated
Type
Carbide Saw Blade
Product Name
Scallop Edge Blade
Warranty
1 Year
Blade Thickness
0.56mm
Blade Width
32mm
Blade Length
7500mm
Process Type
High Frequency Welded
Customized Support
OEM, ODM
Grade
Industrial
Application
Sponge ,Cardboard,Foam Sponge Factory
Material
High Carbon Steel, Alloy Tool Steel
Advantage
Durable
Processing Type
High Frequency Welded
HRC
46-48
Transport Package
Standard Export Package
Specification
7500 * 32 * 0.56mm
Trademark
BFDJ
Origin
China
HS Code
8202200000
Production Capacity
100000/Year
Packaging & Delivery
Package Size
80.00cm * 60.00cm * 6.00cm
Package Gross Weight
13.000kg
Product Description

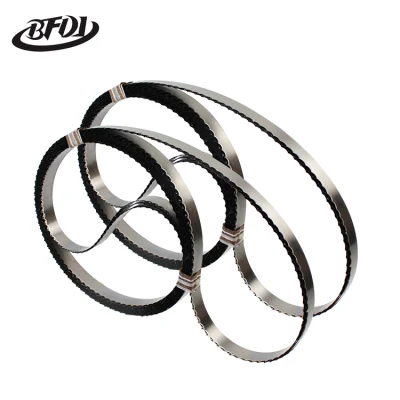

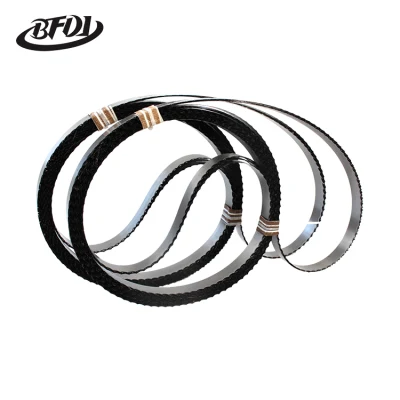

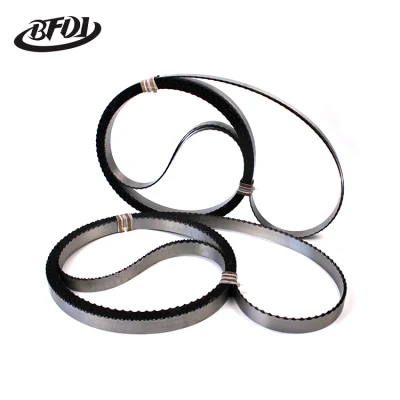

Scallop Edge Knife Blade
High quality of knife-edge
The blade is resistant to impact and high pressure
The blade is resistant to impact and high pressure
High cutting efficiency
Sawn surface smooth and sharp edge
Sawn surface smooth and sharp edge
Import high quality raw material
High hardness, not easy to break, long service life
High hardness, not easy to break, long service life
Item | Scallop Edge Blade |
Material | High Carbon Steel, Alloy Tool Steel |
Application | Sponge Factory, Cardboard Factory, Foam Sponge Factory |
Length | 7500mm |
Width | 32mm |
Thickness | 0.56mm |
HRC | 46-48 |
We would do as your requirement |
Part Sizes | Length*Width *Thickness (mm) |
3410*10*0.45 | |
5200*25*0.5 | |
5450*30*0.5 | |
7500*32*0.56 |
Thickness x Width | Tooth pitch | |
Inches | mm | mm |
0.025 x 13/25" | 0.65x13 | 12.5 |
Features:
- Knife blade uses as sharp as a razor blade, the advantage of the knife is fast and smooth cutting, with little material waste.
- Applies to alloy tool steel making sure the better sharp, excellent tenacity and strong durance.
- High abrasion resistance,superior toughness.
- To keep the gap left between the knife and the machine pressuring knife part to avoid the knife friction, ensuring the accurate of the cutting conditions.
- Suitable for cutting foam,heatboard,plastic,special corrugated paperr,texttile,sponge,honeycomb…

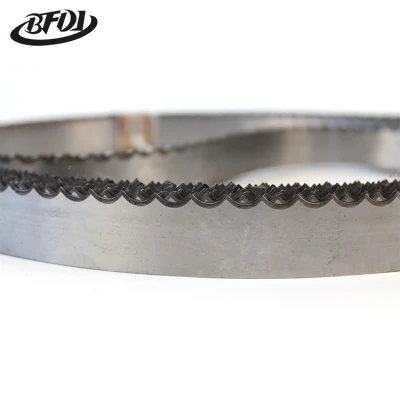

NO Teeth (flat-sharped)
With Teeth (crescent-sharped )
Appliance:
Foam,heatboard,plastic,special corrugated paperr,texttile,sponge,honeycomb…
Used in:
Cutting sponge, EPE ,foam ,
honeycomb paperboard, breand,hamburg
steamed buns and other products.
Can manufacture according to the customers' requirements for special specification
We provide pre-sales service and after-sales service:
Pre-sales service
1: If you need a special tooth shape, or you are not sure about the tooth shape and saw blade size you need, you can contact us.
2: Inquiry and consulting support.
3: Sample testing support.
After-sales service
1: Quality problems support
2: 24H customer services
Reminder:
1: The band saw needs to be stored in a dry and cool place, avoid hand touching the band saw prevent rust
2: When the new band saw is used for the first time, it needs to cut at a slow speed for 1 to 2 hours, which can prolong the service life.
NOTES:
We can provide samples for our clients to test the quality. But clients need to pay the shipping cost. If the sample value is too much and clients need to pay the sample cost.
1: If you need a special tooth shape, or you are not sure about the tooth shape and saw blade size you need, you can contact us.
2: Inquiry and consulting support.
3: Sample testing support.
After-sales service
1: Quality problems support
2: 24H customer services
Reminder:
1: The band saw needs to be stored in a dry and cool place, avoid hand touching the band saw prevent rust
2: When the new band saw is used for the first time, it needs to cut at a slow speed for 1 to 2 hours, which can prolong the service life.
NOTES:
We can provide samples for our clients to test the quality. But clients need to pay the shipping cost. If the sample value is too much and clients need to pay the sample cost.
1. Q: What kind of company are we?
A: A professional knife and saw company integrating development, production and sales.
2. Q: How long will it take to deliver?
A: If the warehouse has sufficient supply, it usually takes 5-10 days for delivery. If the warehouse supply is insufficient, it usually takes 15-30 days for delivery. In general, it is determined by the number of orders placed by the user.
3. Q: Will you provide samples?
A: Yes, we will provide samples, but users need to provide the freight by themselves. If the sample size needs to be individually customized or the cost is too high, the user needs to provide the sample fee and shipping cost.
4. Q: What payment methods do you accept?
A: If the transaction amount is small, the buyer needs to 100% and bear the bank fee. If the transaction amount is larger, 30%-50% advance payment can accept L/C. However, the price of the letter of credit will be high, so the buyer needs to provide the terms of use.
5. Q: Do you provide after-sales service?
A: Yes, we provide after-sales service. Due to the epidemic, we can only provide online after-sales service for the time being. Buyers who have any product questions and need to consult can contact us through our official website contact information.
