Basic Info.
Model NO.
MIRA9
Structure Type
Standing Type
Laser Classification
Gaseous Laser
Safety Level
Class 1
Fastest in Its Class
Scan Speeds of up to 1200 mm/Sec
All-in-One System
Integrated Water Cooling, Exhaust Fan and Air Assi
Laser Power
80W/100W/130W/150W Glass Tube
Built-in WiFi
Included
Auto Focus
Included
Max Acceleration Speed
5g
Work Table
Honeycomb + Blade
Working Area
1400mm*900mm
Multiple Interfaces
USB, Ethernet, and WiFi
Graphic Format Supported
Ai/Pdf/Sc/Dxf/Hpgl/Plt/Rd/Scpro2/Svg/Lbrn/BMP/JPG/
Transport Package
Wooden Box
Specification
1600*1000mm
Trademark
Aeon Laser
Origin
China
HS Code
8456110090
Production Capacity
4800set/Year
Product Description

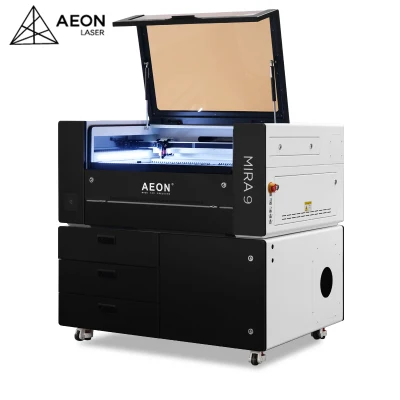

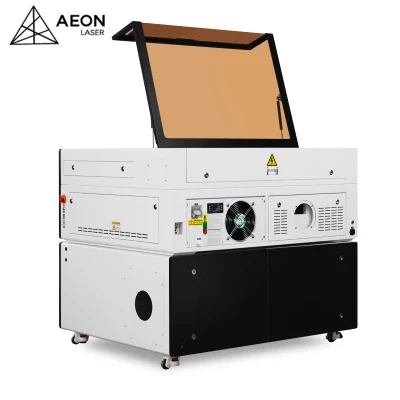

AEON DIY Home desktop laser engraver for Wood/Acrylic/Glass/Plastic/Leather/Polywood/MDF (All In One Design)
Mira Series is a desktop design (All-In-One design)--with built-in water cooling, exhaust fan, and everything inside of the machine, the customer only needs to plug in the power to run the machine. Despite its modern design, this Series machine featured high speed-- with a stepper motor, Max. Engraving speed 1200mm/s; Max acceleration speed 5G.
Model :MIRA5 3050 (300*500mm) / MIRA7 7045(700*450mm) / MIRA9 9060 (900*600mm)
Power:40W 60W 80W 100W 130W
Technical Parameters of AEON DIY Home desktop laser engraver for Wood/Acrylic/Glass/Plastic/Leather/Polywood/MDF (All In One Design)
| Working Area | 900*600mm(23 5/8″ x 35 1/2″) |
| Machine Size | 1306mm*1037mm*555mm(51 3/8″ x 40 3/4″ x 21 1/8″) |
| Machine Weight | 502 lbs. (228kg) |
| Work Table | Honeycomb + Blade |
| Cooling type | Vapor Compression (5000) Water Chiller |
| Laser tube type | C02 glass tube |
| Laser power | 60W/80W/100W/RF30W/RF50W |
| Z-Axis Travel | 150mm(5 7/8") |
| Air Assist | 105W Built-In Air Pump |
| Blower | 330W Built-In Exhaust Fan |
| Input Voltage | 120V AC Single Phase |
| Rated Power | 1200W |
| Engraving Speed | 0-1200mm/second (0 - 47 1/4" /second) |
| Cutting Speed | 0-680mm/second (0 - 26 49/64"/second) |
| Cutting Thickness | 0-20mm (depends on different materials) |
| Max Acceleration Speed | 5G |
| Laser Optical Control | 0-100% Set by software |
| Minimum Engraving Size | Minimum Font Size 1.0mm x 1.0mm(English Letter) 2.0mm*2.0mm(Chinese Charactor) |
| Max Scanning Precision | 1000DPI |
| Locating Precision | <=0.01mm |
| Red Dot Positioning | Combiner Type |
| Built-in WIFI | Included |
| Auto Focus | Included |
| Engraving Software | RD works/LightBurn |
| Graphic Format Supported | AI/PDF/SC/DXF/HPGL/PLT/RD/SCPRO2/SVG/LBRN/BMP/JPG/JPEG/PNG/GIF/TIF/TIFF/TGA |
| Compatible Software | CorelDraw/Photoshop/AutoCAD/All kinds of Embroidery Software |
| Add-Ons | Roller Rotary, Rotary Chuck, Stand, Fume Extractor, Remote Control, Camera |
Application Materials of AEON DIY Home desktop laser engraver for Wood/Acrylic/Glass/Plastic/Leather/Polywood/MDF (All In One Design)
| Laser Cutting | Laser Engraving |
| Acrylic | Acrylic |
| *Wood | Wood |
| Leather | Leather |
| Plastics | Plastics |
| Fabrics | Fabrics |
| MDF | Glass |
| Cardboard | Rubber |
| Paper | Cork |
| Corian | Brick |
| Foam | Granite |
| Fiberglass | Marble |
| Rubber | Tile |
| River Rock | |
| Bone | |
| Melamine | |
| Phenolic | |
| *Aluminum | |
| *Stainless Steel |
*Cannot cut hardwoods like mahogany
*CO2 lasers only mark bare metals when anodized or treated.
| FAQ |
| 1 Q: Can the machine engrave and cut? |
| A. Yes, even on the same Job, you can do settings with different colors in the software and also can make holes. |
| 2. Q. Is the machine must work with computers? |
| A. Must connect with computer with USB cable when you change the settings of the machine. for the design files, you can transfer the file with a USB memory stick to the machine, Or can download it to the machine directly with a USB cable from the computer. |
| 3. Q. Can the machine be split so it can fit into my doors? |
| A. Such as laser engraving cutting machine model of WHL3050, WHL4060, which can the legs separate from the main body of the machine. |
| 4. Q. How long has the laser tube been working well? |
| A. Unfortunately we cannot confirm this. |
| it is about 4000+ hours for ordinary co2 laser tube 10,000+ hours for Reci brand co2 laser tube 6000+ hours for Pomelo Laser co2 laser tube |
| 5. Q. Can you explain what the differences are between the different watt laser tubes? |
| A: Usually, the power of the laser tube is decided by two parameters: |
| 1. The length of the laser tube( The longer the laser tube, the more powerful). |
| 2. The Diameter of the Laser tube (The bigger the laser tube, the more powerful). |
| AND bigger watt laser tube can cut thicker materials, however, a bigger watt has a big laser beam, therefore, For engraving, It's. better to use small watt laser tube-like 60watt or 80watt.) |
| 6. Q.How do I know the laser tube is nearly used up? |
| A: The normal color of the laser beam is purple while working. When a laser tube is dying the color will become white |
