Basic Info.
Model NO.
YC-1625A
Power Source
Electric
Layout
Horizontal
Maxi Cutting Speed
1200mm/S
Translational Velocity
1500mm/S
Transmission Interface
Ethernet
Motor
Servo Motor
Fixed Mode
Vacuum Absorb
Transport Package
Wooden Case
Specification
2500*1600mm
Trademark
Yuchen
Origin
China
Production Capacity
50 Set Per Month
Product Description

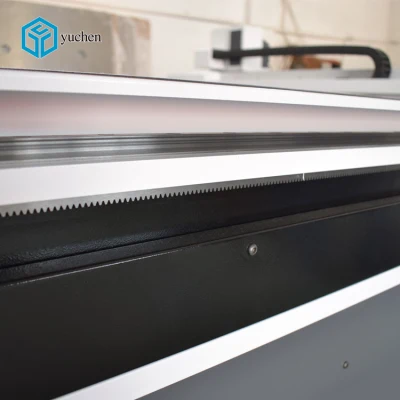

Automatic CNC Blade Leather, XPE Foam Cutting Machine by Vibrating knife
Model: YC-1625A Machine size can be customized
Brand: Yuchen
Applicable cutting materials:different kinds of soft materials, sucha as car mats, car seat, PVC, embroidery accessories, foam composite material, XPE, coiled mats, leather, silicone, rubber, truck tarpaulin, gasket,etc
Application: widely used in automotive interior industry,garment.
Functions: cutting(oscillating cutting tool).
Optional cutting tool: the cutting tool is optional according to customer's requirements, such as Oscillating cutting tool , rotary cutting tool, punching,etc.
Features: Oscillating knife cutting, fast speed, high efficiency; saving material and labor, more convenient and easier to operate for user.
Parameter:
Model: YC-1625A Machine size can be customized
Brand: Yuchen
Applicable cutting materials:different kinds of soft materials, sucha as car mats, car seat, PVC, embroidery accessories, foam composite material, XPE, coiled mats, leather, silicone, rubber, truck tarpaulin, gasket,etc
Application: widely used in automotive interior industry,garment.
Functions: cutting(oscillating cutting tool).
Optional cutting tool: the cutting tool is optional according to customer's requirements, such as Oscillating cutting tool , rotary cutting tool, punching,etc.
Features: Oscillating knife cutting, fast speed, high efficiency; saving material and labor, more convenient and easier to operate for user.
Parameter:
| Model | YC-1625L | YC-1630L | YC-1625A |
| Working area | 2500×1600mm | 3000×1600mm | 2500×1600mm |
| Operation properties | continuous cutting with high efficiency, 7*24 with zero downtime | ||
| Safety device | Infrared sensor; sensitive response; safe and reliable | ||
| Maxi cutting speed | 1200mm/s | ||
| Translational velocity | 1500mm/s | ||
| Applicable materials | PVC, embroidery accessories, foam composite material, XPE, coiled mats, leather, silicone, rubber, truck tarpaulin, etc | ||
| Multifunctional head | Oscillating cutting tool | ||
| Cutting thickness | 0.1-20mm (subject to material) 0.1-10.0mm (subject to the material cutting) | ||
| Cutting tolerance | ±0.1mm | ||
| Transmission interface | Ethernet | ||
| Driven system | Motor: Panasonic Linear rail: SMTYCC | ||
| Fixed mode | Vacuum absorb | ||
| Supply voltage | 220V 380V±10%,50HZ AC 220V 380V±10%,50HZ | ||
| Rated power | 11KW | ||
