Basic Info.
Model NO.
FY-GCM01
Warranty
24 Months
Customized
Customized
Layout
Horizontal
Cutting Material
Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
Automatic Grade
Automatic
Power Source
Pneumatic
Cutting Mode
Plasma Cutting
Cut Width
2200mm
Cut Length
6500mm
CNC System
FL2300b
Flame Cutting Torch
Fy Group
Software
FL2300b
Arc Voltage Regulator
FL1621
Plasma Power (Optional)
Huayuan Lgk or Hypertherm
Key Selling Point
Flexible Cutting Size and Power
Applicable Industries
Manufacturing Plant, Sheet Metal Cutting etc.
Plasma Cutting Thickness
25mm
Flame Cutting Thickness
20mm Above
Machine G.W
About 2, 100kg
Type
Plasma Cutting Machine
Types
CNC Plasma Cutting Machine
Machine Type
Plasma and Flame Cutting Machine
Transport Package
Wooden Case
Specification
3000x8000mm
Trademark
FY CNC
Origin
Yangzhou, Jiangsu, China
HS Code
8461500090
Production Capacity
85000 Sets Per Year
Packaging & Delivery
Package Size
350.00cm * 200.00cm * 150.00cm
Package Gross Weight
2800.000kg
Product Description

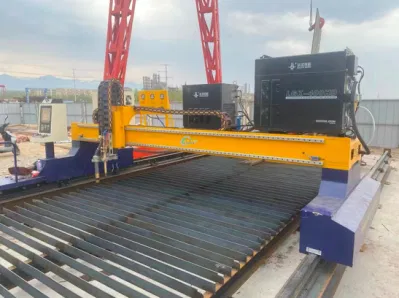

Cnc Plasma Cutting Machine Model FY-GCM01
SPECIFICATION

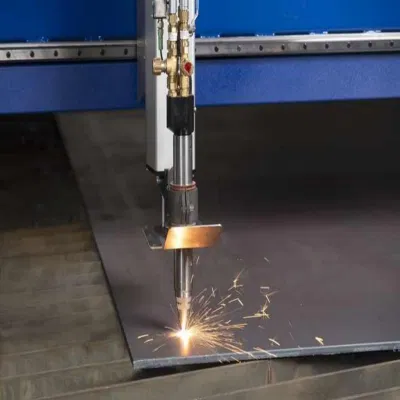

| No. | ITEM | QTY | UNIT | SPEC |
| 1 | FY-GCM01 body | 1 | Set | Steel plate welded |
| 2 | Width | 3000 | mm | cut width 2200mm |
| 3 | Length | 8000 | mm | cut length 6500mm |
| 4 | CNC system | 1 | Set | FL2300B |
| 5 | Flame cutting torch | 1 | Set | FY Group |

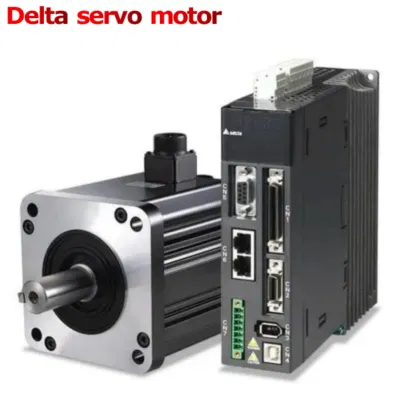

| 6 | Servo Motor | 3 | Set | Panasonic |
| 7 | Horizontal guide rail | 2 | Set | China |
| 8 | Longitudinal guide rail | 2 | Set | China |
| 9 | Gear rack | 3 | Set | China |
| 10 | Lifter | 1 | Set | FY Group |
| 11 | Clamp | 1 | Set | FY Group |
| 12 | Arc voltage regulator | 1 | Set | FL1621 |
| 13 | Reducer | 3 | Set | PL80 |
| 14 | Drag chain | 2 | Set | 45-125 |
| 15 | Electrical components | 1 | Set | Chint/Delixi |
| 16 | Automatic ignition system | 1 | Set | XZDC24 |

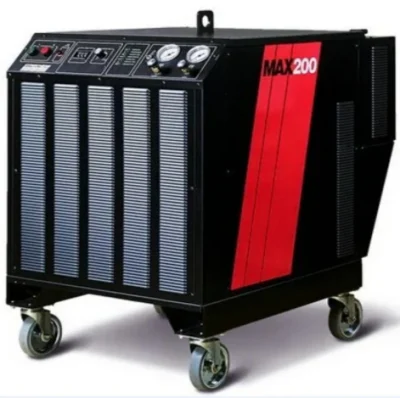

| 17 | Plasma power (optional) | 1 | Set | Huayuan LGK63 (Gas cooled cutting gun, cutting thickness below 8mm) |
| 18 | Huayuan LGK120 (Gas cooled cutting gun, cutting thickness below 12mm) | |||
| 19 | Huayuan LGK200 (Water cooled cutting torch, cutting thickness below 20mm) | |||
| 20 | Huayuan LGK300 (Water cooled cutting torch, cutting thickness below 32mm) | |||
| 21 | Huayuan LGK400 (Water cooled cutting torch, cutting thickness below 40mm) | |||
| 22 | Plasma power (optional) | 1 | Set | Hypertherm Max45 (Gas cooled cutting gun, cutting thickness below 8mm) |
| 23 | Hypertherm Max85 (Gas cooled cutting gun, cutting thickness below 16mm) | |||
| 24 | Hypertherm Max105 (Gas cooled cutting gun, cutting thickness below 20mm) | |||
| 25 | Hypertherm MaxPro200 (Water cooled cutting torch, cutting thickness below 25mm) | |||
| 26 | I bar | Customer preparing based on supplier's drawing | ||
| 27 | Water channel | |||
| 28 | Material rack | |||
| 29 | Air pump | |||
| 30 | Power cable | |||
| 31 | Air tube | |||
| 32 | Oxygen tube | |||
| 33 | Gas pipe | |||
| 34 | Soldering wire | |||
| 35 | Key selling point | Flexible cutting size and power | ||
| 36 | Applicable Industries | Manufacturing Plant, sheet metal cutting, machinery, shipbuilding, automobile, steel factory, metal workshop etc. | ||
PRODUCT DESCRIPTION
Plasma cutting machine is an efficient metal cutting tool that uses high-temperature plasma gas to cut materials. The following are the characteristics and advantages of plasma cutting machines:
Features:
1. High precision and efficiency: Plasma cutting technology can quickly and accurately cut various thicknesses and types of metal materials. Due to its high efficiency, it is usually more favored than traditional mechanical cutting methods.
2. Automation and Intelligence: Modern plasma cutting machines are mostly equipped with automated and intelligent systems, which can achieve CNC operations, automatically adjust cutting parameters, and greatly improve cutting accuracy and efficiency.
3. * * Multifunctionality * *: Plasma cutting machines can not only be used for cutting metal materials, but also for processing and processing other materials such as glass, ceramics, concrete, etc.
4. * * Environmental Protection * *: Plasma cutting technology generates less smoke and exhaust gas, and can be carried out in a closed environment, reducing environmental pollution.
5. * * Simple Maintenance * *: The structure of the plasma cutting machine is relatively simple, making maintenance more convenient and reducing usage costs.
Advantages:
1. * * High precision * *: Plasma cutting machines can provide high-precision cutting, with precise control of incision width and depth.
2. * * High speed cutting * *: The cutting speed of the plasma cutting machine is very fast, which can greatly improve production efficiency.
3. Low cost: Due to the lower energy consumption of plasma cutting machines, their operating costs are also relatively low.
4. * * Wide applicability * *: Plasma cutting machines are suitable for cutting metal materials of various thicknesses, and can even process some non-metallic materials.
5. * * Easy to operate * *: The operation of the plasma cutting machine is simple and easy to understand, and does not require too much professional skills to operate.
Overall, plasma cutting machines have the advantages of high efficiency, high precision, multifunctionality, environmental protection, and simple maintenance, and are therefore widely used in various industrial manufacturing and processing fields.
TECHNICAL PERFORMANCE
| No. | ITEM | SPEC | |
| 1 | Cutting torch lifting stroke | 50-100 mm | |
| 2 | Machine running speed | 50-6000mm/min (E&EO ≤±5%) | |
| 3 | Automatic elevation accuracy | ≤±1.0mm | |
| 4 | Machine G.W | About 2,100 KG | |
| 5 | Longitudinal line accuracy | ±0.2mm/10m | |
| 6 | Straight-line repetition accuracy | ±0.4mm/10m | |
| 7 | Comprehensive accuracy of the whole machine (Take the right comprehensive graph as the standard) Side length (four sides) 1000 x 1000 Dking speed 500-800mm / min | ||
| 8 | Direction accuracy | ±0.1mm | A) Positioning accuracy and repetition accuracy of the whole equipment: meet JB / T5102-1999 standard B) Cutting dimension accuracy and section quality: comply with JB/T10045.3-1999 standard |
| 9 | straightness | ±0.2mm | |
| 10 | roundness | ±0.2mm | |
| 11 | The diagonal difference | ±0.3mm | |
| 12 | Cutting accuracy | ±0.3mm | |
| 13 | Repeat positioning accuracy | ±0.1mm | |
| 14 | Machine line accuracy | 0.2mm | |
| 15 | Cutting surface quality (roughness) (Select δ =25 plate) | Rz(um)=70+1.2a Visual inspection: Roughness: 12.5 | |
QUALITY INSPECTION

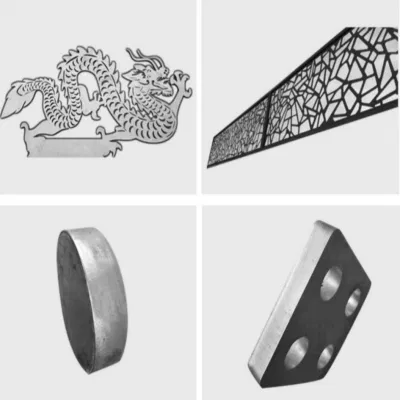

REAL CUTTINGS
PACKING & SHIPPING
CERTIFICATES
CUSTOMER VISIT
CUSTOMER FEEDBACK
FACTORY VIEW
FAQ
Q1: Are you a manufacturer or trading?
A1: We have been manufacturing CNC machines since 1999, with our own international trading department.
Q2: Do you require MOQ?
A2: Sample order is welcomed, MOQ is quite flexible.
Q3: How can you ensure quality?
A3: We have our own QC team and certificates, all orders will be tested before shipment, and we do offer video check.
Q4: How much is the freight cost of samples?
A4: It depends on which model you get, and QTY + your delivery address.
Q5: What's the shipping method?
A5: All shipping method is welcomed, regularly our customers require CIF, DDP, DDU, FOB etc.
Q6: What about after sales services?
A6: We have a professional team which is in charge of after-sales service, we will respond within 6 hours. We offer variety warranty terms based on your order models, pls talk to us for more details.
Q8: What about lead time?
A8: Regularly it takes about 7-15 days for bulk order, but surely it depends on specific model, order QTY and specific time you place the order, so we suggest you confirm it with us before you order.
RIGHT MACHINE, RIGHT COST, RIGHT NOW.
