Basic Info.
Model NO.
703
Packaging
Film
Classification
Cutting Machine
Applicable Process
Process Materials
Suitable Substrates
Adhesive Tapes
Packaging Material
Wood
Machine Width
1100/1300/1600mm
Cutting Shaft
1/2/3/4/6/8/10 Shafts
Minimum Cutting Width
3mm
Cutting Blade
Taiwan Brand
Transport Package
Wooden Box
Origin
China
HS Code
8477800000
Production Capacity
20 Sets/Month
Product Description

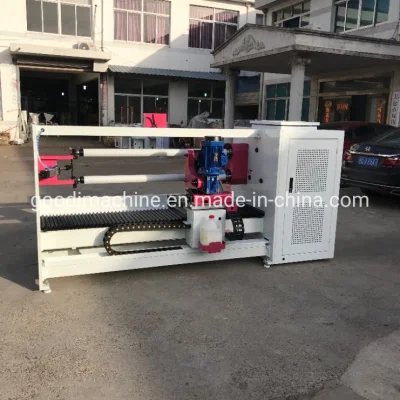

This tape cutting machine can slit/cut all kinds of tapes, such as bopp tape, masking tape,pvc tape,duct tape,medical tape,pe foam tape,double sided tape etc all kinds of adhesive tape and non adhesive tapes.
Features:
A:We are a factory and we have years of experience of manufacture of rewinding and cutting machines.
2.Q:Does the machine be able to cut different size of tapes?
A:Yes absolutely , you can set any width by the PLC controler.
3.Q:Do you make machines according to specifications?
A:Yes,we do design different machines for special purpose.
4.Q:Do you have the manual book ?
A:Yes, and if necessary , our engineers are available to service overseas .And our machines are highly automatical and easy to operate.
5.Q:How long does it usually take you to make the delivery.
A:As a rule ,we deliver our machine within 1 month , and of cause it will take longer for special orders , but in no case would it take longer than 3 months.
6.Q:The voltage in our country is different from yours,does the machine can be changed?
A:Yes, we can make the change for customers.

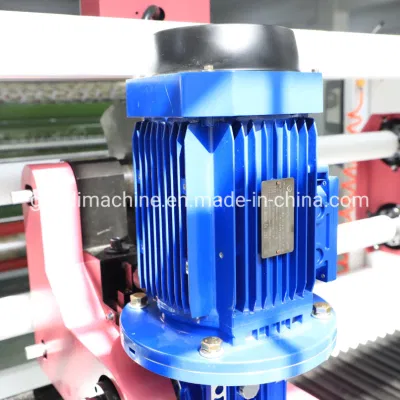

| Main motor | AC-5HP+Frequency Inverter | ||
| Size control | 700W Servo motor | ||
| PLC control system | Mitsubish | ||
| Failure detection | Automatic detection system | ||
| Moving system | High precision linear slide rail, high precision ball screw | ||
| Round knife cool and clean | Automatic water spray cooling with carpet cleaning | ||
| Motor of cutting round knife | 3HP AC motor with inverter | ||
| cutting system: | 700W servo motor control | ||
| cutting circular blade | 8" high-speed steel |
Features:
- Centralized control panel: all operation controls. For this machine are centralized in a control panel.
- Control panel provides major functions: material and blade running speed (LED screen display), width counter, number of cuts counter.
- Silicon lubricating system prevents the blade from sticking on adhesives and allows smooth cutting at all times. Silicon liquid is re-circulated.
- The blade is back pressure controlled through an air and hydraulic combination, giving maximum cutting stability and fast blade retract after each cut, cutting pressure can be easily adjusted to suit various types of materials.
- Cutting circular knife and main shaft power force adopted with AC step-lessadjusting motor and available in any rotating direction.
- Cutting width setting up controlled by servo motor adjustable equipped with ball screw to secure accurate size
- PLC programmable control.
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory and we have years of experience of manufacture of rewinding and cutting machines.
2.Q:Does the machine be able to cut different size of tapes?
A:Yes absolutely , you can set any width by the PLC controler.
3.Q:Do you make machines according to specifications?
A:Yes,we do design different machines for special purpose.
4.Q:Do you have the manual book ?
A:Yes, and if necessary , our engineers are available to service overseas .And our machines are highly automatical and easy to operate.
5.Q:How long does it usually take you to make the delivery.
A:As a rule ,we deliver our machine within 1 month , and of cause it will take longer for special orders , but in no case would it take longer than 3 months.
6.Q:The voltage in our country is different from yours,does the machine can be changed?
A:Yes, we can make the change for customers.
