Basic Info.
Model NO.
JPS-320C-TR-D
Application
Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material, EMI Shielding Materials, Earthquake Products, Paper, Film, Foam
Rewind Mode
Turret Rewind
Unwind Tension
Semi-Automatic Constant Tension Control
Rewind Tension
Full-Automatic Constant Tension Control
Slitter Speed
120m/Min
Die-Cutting Speed
80m/Min
Die-Cutting Length
240-476mm
Max Unwind Diameter
700mm
Max Rewind Diameter
700mm
Unwind&Rewnd Shaft
1",1.5",3" Optional
Dimension
2.2X0.9X1.4m (L x W x H)
Transport Package
Export Wooden Case
Specification
CE
Trademark
JPS
Origin
Kunshan, China
HS Code
844110000
Production Capacity
300 Sets/Month
Product Description

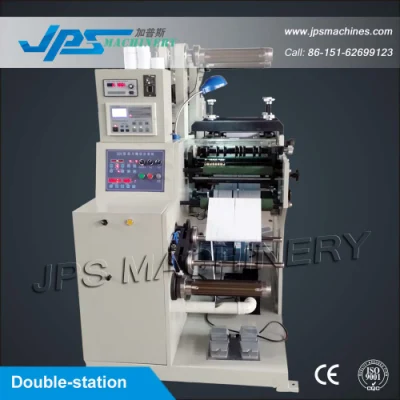

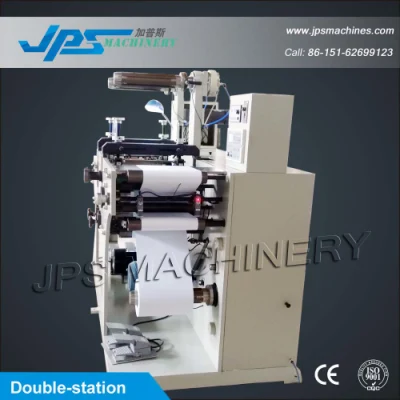

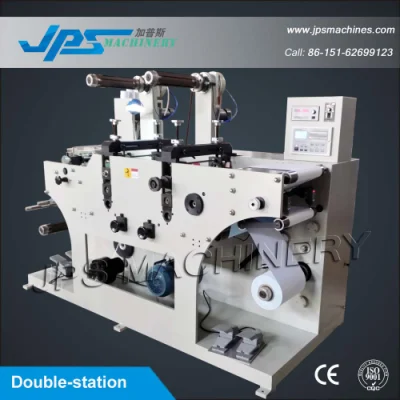

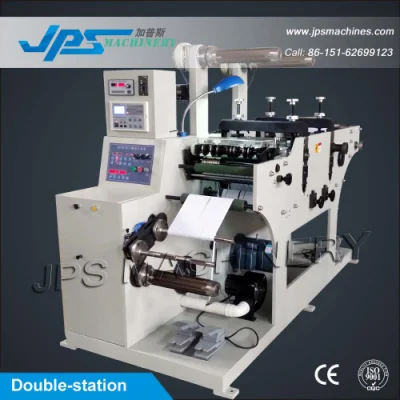

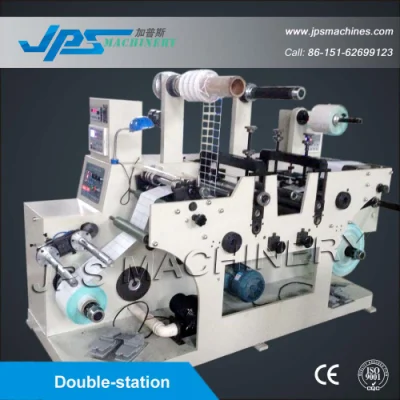

JPS-320C-TR Double-station Label Fully Rotary Die-cutter With Slitting Function ( Turret Rewinder)
Feature:
This product is suitable for blank label. Die cutting,slitting , rewinding can be in one process. It have automatic tension controller system for unwinding and rewinding, Automatic inflating air for air shafts, Optional Start and stop by foot. This machine has automatic meter count, number count, length preset, automatic-stop when up to length preset functions. The unwinding is controlled by the two photoelectric eyes. The whole machine structure is compact, fast and with high efficiency. Operation is easy and steadily
Technical Parameters:
Functions:
1. Advanced turret rewinder for two shafts
2. Automatic metering and counting
3. Semi-automatic tension control for unwind, waste draining
4. Automatic tension control for rewind
5. Foot switch available .
Optional functions:
1.Lamination 2. Double-station 3.clockwise and counter-clockwise rewinder
Standard configuration:
1. Two rotary die cutting station
2. One slitting station
3. With 1 pc 3" unwinding shaft
2 pcs 1.5" rewinding shafts
one pc 1" rewinding shaft
4. With meter/number counter
5. With two photoelectric eyes
6. With 8 pcs rotary knife
7. One magnetic brake, two magnetic clutches
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines
JPS-320C-TR Double-station Label Fully Rotary Die-cutter With Slitting Function ( Turret Rewinder)----- Version
JPS-320C-TR Double-station Label Fully Rotary Die-cutter With Slitting Function ( Turret Rewinder)----- Mould
Mould: Magnetic cylinder
Mould : Engraved cylinder
JPS-320C-TR Double-station Label Fully Rotary Die-cutter With Slitting Function ( Turret Rewinder)----- Application
JPS-320C-TR Double-station Label Fully Rotary Die-cutter With Slitting Function ( Turret Rewinder)----- Relative details
JPS-320C-TR Double-station Label Fully Rotary Die-cutter With Slitting Function ( Turret Rewinder)----- Customer show
Feature:
This product is suitable for blank label. Die cutting,slitting , rewinding can be in one process. It have automatic tension controller system for unwinding and rewinding, Automatic inflating air for air shafts, Optional Start and stop by foot. This machine has automatic meter count, number count, length preset, automatic-stop when up to length preset functions. The unwinding is controlled by the two photoelectric eyes. The whole machine structure is compact, fast and with high efficiency. Operation is easy and steadily
Technical Parameters:
| Model | JPS-320C-TR |
| Slitting speed | 120m/min |
| Die cutting speed | 80m/min |
| Die cutting length | 240-476mm |
| Max paper width | 320mm |
| Max Unwind diameter | 700mm |
| Max rewind diameter | 700mm |
| Dimension | 2.2x 0.9x1.4m (LxWxH) |
| Machine weight | About 1000kg |
Functions:
1. Advanced turret rewinder for two shafts
2. Automatic metering and counting
3. Semi-automatic tension control for unwind, waste draining
4. Automatic tension control for rewind
5. Foot switch available .
Optional functions:
1.Lamination 2. Double-station 3.clockwise and counter-clockwise rewinder
Standard configuration:
1. Two rotary die cutting station
2. One slitting station
3. With 1 pc 3" unwinding shaft
2 pcs 1.5" rewinding shafts
one pc 1" rewinding shaft
4. With meter/number counter
5. With two photoelectric eyes
6. With 8 pcs rotary knife
7. One magnetic brake, two magnetic clutches
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines
JPS-320C-TR Double-station Label Fully Rotary Die-cutter With Slitting Function ( Turret Rewinder)----- Version
JPS-320C-TR Double-station Label Fully Rotary Die-cutter With Slitting Function ( Turret Rewinder)----- Mould
Mould: Magnetic cylinder
Mould : Engraved cylinder
JPS-320C-TR Double-station Label Fully Rotary Die-cutter With Slitting Function ( Turret Rewinder)----- Application
JPS-320C-TR Double-station Label Fully Rotary Die-cutter With Slitting Function ( Turret Rewinder)----- Relative details
JPS-320C-TR Double-station Label Fully Rotary Die-cutter With Slitting Function ( Turret Rewinder)----- Customer show
