Basic Info.
Model NO.
AH-720
Computerized
Computerized
630mm
24"
Transport Package
2-Layer Export Standard Cartons
Specification
CE
Trademark
Refine
Origin
Hefei, Anhui, China
HS Code
8479
Production Capacity
25000PCS/Year
Product Description
Factory direct sale ARMS Manual contour cut vinyl cutter cutting machine
cutter cutting machine:
The Cutting Plotter Machine Is Suitable For Die Cutting All Shapes Labels. It Is Widely Used To Produce The Sticker Which Design By Your own.
Filed: packaging proofing, clothing plate, making car beauty industry, Make Signs for shop windows, cars and vans., cutting labels, heat pressing logos and slogans onto T-Shirts.
Material: vinyl adhesive, reflective film, craft paper, sandblast membrane, PET, PP, PVC, PC, wall paper, etc.
Main Features:
1. Metal Cutting head with 4 wheels

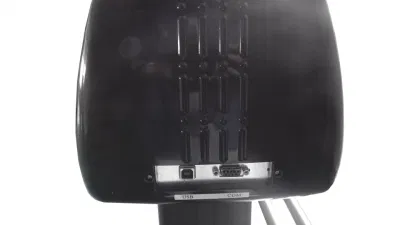

2. Three interfaces: USB / COM
3. Arm type main board, Manual Alignment contour cut can be done through New Future M (CorelDraw plug-in)
4.. Mechanical Resolution: 0.0254mm/pulse
5. Carriage: Made of cast-iron aluminum
6. Main Roller: Aluminum
7. Compatible system: Windows 32 bit and 64Bit
8. Can cut 1mm size
9. Manual contour function optional
10. Stepper motor, low sound, high speed
11. Double layer carton packing
12. One year warranty
13. In-time after sale service
Paramenters:
Packing &shipping:
Shipment:
1) TNT/DHL/UPS for samples, door-to-door shipping service.
2) For batch machines, shipment is effected by Seaway (FCL or LCL).
3) We are able to arrange shipping. It's also acceptable if buyers nominate their own shipping agent.
4) Delivery time: 3 -7 days for samples; 10-20 days for batch goods.
Payment:
1) We accept T/T, Western Union, L/C(depending on order amount).
2) Sight L/C is acceptable if order amount exceeds usd20, 000.00.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Spain, UK, Russia, USA, Brazil, Mexico, Vietnam, Australia, Indonesia, Uruguay and many other countries.
cutter cutting machine:
The Cutting Plotter Machine Is Suitable For Die Cutting All Shapes Labels. It Is Widely Used To Produce The Sticker Which Design By Your own.
Filed: packaging proofing, clothing plate, making car beauty industry, Make Signs for shop windows, cars and vans., cutting labels, heat pressing logos and slogans onto T-Shirts.
Material: vinyl adhesive, reflective film, craft paper, sandblast membrane, PET, PP, PVC, PC, wall paper, etc.
Main Features:
1. Metal Cutting head with 4 wheels
2. Three interfaces: USB / COM
3. Arm type main board, Manual Alignment contour cut can be done through New Future M (CorelDraw plug-in)
4.. Mechanical Resolution: 0.0254mm/pulse
5. Carriage: Made of cast-iron aluminum
6. Main Roller: Aluminum
7. Compatible system: Windows 32 bit and 64Bit
8. Can cut 1mm size
9. Manual contour function optional
10. Stepper motor, low sound, high speed
11. Double layer carton packing
12. One year warranty
13. In-time after sale service
Paramenters:
| Model | AH-720 | AH-870 | AH-1350 |
| Max. mea width | 720mm | 870mm | 1350mm |
| Max. cutting width | 630mm | 780mm | 1260mm |
| Main board | ARM type | ||
| Language | CH/EN | ||
| Contour type | Manual contour | ||
| Accuracy | +/-0.01mm | ||
| Feeding accuracy | 10m | ||
| Interface | USB/COM | ||
| Feeding Roller | Al roller | ||
| Drive motor | Stepper motor | ||
| Carriage | Casting car | ||
| Stand | Al basket | ||
| Speed | 20-800mm/s | ||
| Force | 20-500g | ||
| Power supply | AC 85-264V | ||
| Recommend software | Signmaster,Artcut,Coreldraw,Signcut,Flexi | ||
| Machine power | < 100W | ||
| Packing Size | 950*330*350mm | 1100*330*420mm | 1580*330*420mm |
Packing &shipping:
- 1 x Cutting Plotter
- 1 x User's Manual
- 1 x Artcut Software
- 1 x Power Cord
- 1 x Serial Cable
- 1 x Blades Holder
- 1 x Pen Holder
- 1 x 3" Driver CD
- 1 x Stand
- 3 x Blades
Shipment:
1) TNT/DHL/UPS for samples, door-to-door shipping service.
2) For batch machines, shipment is effected by Seaway (FCL or LCL).
3) We are able to arrange shipping. It's also acceptable if buyers nominate their own shipping agent.
4) Delivery time: 3 -7 days for samples; 10-20 days for batch goods.
Payment:
1) We accept T/T, Western Union, L/C(depending on order amount).
2) Sight L/C is acceptable if order amount exceeds usd20, 000.00.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Spain, UK, Russia, USA, Brazil, Mexico, Vietnam, Australia, Indonesia, Uruguay and many other countries.
