Basic Info.
Model NO.
XLH
Spindle Number
5
Feed Mode
Manual
Controlling Mode
CNC
Certification
CE, ISO, FDA
Customized
Customized
Condition
New
Color
Customized
After-sales Service
1 Year
Machine Item
3D 4 Axis EPS Styrofoam Polystyrene Foam Statue Cu
Rack
Precision Ground Rack
Machine Body
Steel Plate + Square Pass Integrated Welding (The
Voltage
380V, 220V 50herz, Can Be Customized
After Sales Service
24 Hours Technical Support by Email, Call, Video
Warranty Time
Offer Free Spare Parts and Service Within 12 Month
Working Experience
Twenty Years′ Experience
Regarding Price
Lowest Reasonable Offers with Best Machine
Delivery Time
30 Days
Screw
Taiwan Tbi Screw
Spindle
12kw
Y Axis
2 Piece Independent Y Axis
Lubrication System
Automatic Oil Pump System
Control System
Five-Axis Linkage Special (with Rtcp) Lenark Lynuc
System Control Method
Bus Absolute Value
Transport Package
Standard Package, Be Made According Cutomer Need
Specification
1930*1160*1840mm
Trademark
xinlihui
Origin
Qingdao
HS Code
8465990000
Production Capacity
100/Week
Packaging & Delivery
Package Size
5500.00cm * 2250.00cm * 2300.00cm
Package Gross Weight
4500.000kg
Product Description
Product Description
1,Application :
Detail machine pictures, all photoes are for 100% real shooting ! For more pictures, video and details, please email me!

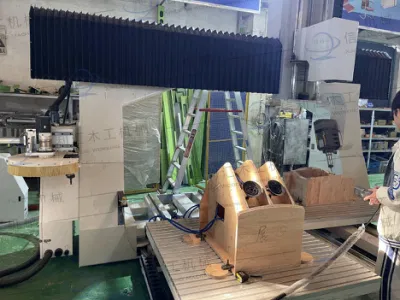

1, Product Show
2, Specification | Machine Body | Steel plate + square pass integrated welding (the latest model) |
| rack | Precision ground rack |
| guide | Jiangmen Kate Rails |
| screw | Taiwan TBI screw |
| Spindle | 12KW |
| Y axis | 2 piece independent Y axis |
| Lubrication system | Automatic oil pump system |
| Control System | Five-axis linkage special (with RTCP) Lenark LYNUC |
| System control method | Bus absolute value |
| Processing file format | NC |
| Programming software | MASTERCAM/UG/POWERMIL |
| Y axis transmission mode | Inovance 0.85KW absolute servo drive + grinding rack drive |
| Z axis transmission mode | Inovance 1.8KW absolute servo drive + grinding rack drive |
| X axis transmission mode | Inovance 1.8KW absolute servo drive + grinding rack drive |
| A ,C axis transmission mode | Inovance 0.75KW absolute servo drive + Japanese reducer |
| Pneumatic Components | Yadek |
| Tool changer | 8 sets knifes |
| Tool changer function | Have |
| Inverter | Fuling 15KW inverter |
| Workbench accessories | Standard 4 sets of N-150 suction cups |
| Electric box | Schneide r electrical components |
| Working table size | (L*W)1200mm*1200mmX2 |
| Gantry height | 900MM |
| Effective work height | 750mm |
| X,Y,Z axis max speed | 50m/min |
| X,Y,Za xis max working speed | 20m/min |
| maximum turning speed | 15m/min |
| Precision | ±0.02mm |
| Repeatability | ±0.05mm |
| Air pressure | 6Mpa |
| Voltage | 415V 50hz 3phase |
| Machine size | 4300mm*2300mm*3800mm |
| Weight | 3500KG |

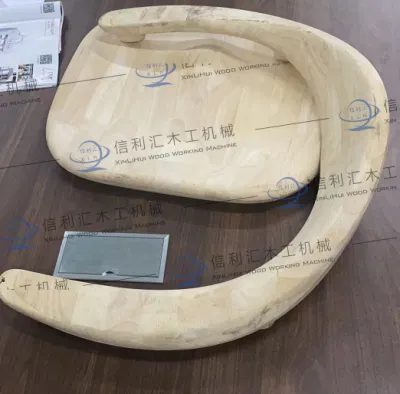

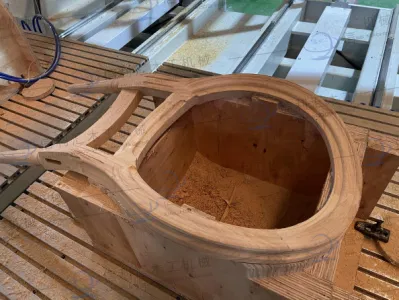

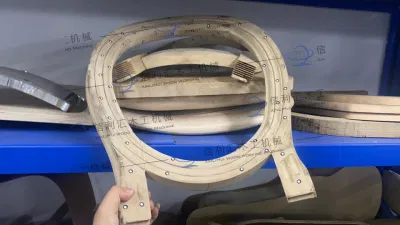

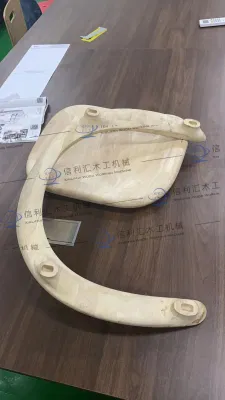

4, Samples Show:
5, Other Related Machines:
6, Usage
