Basic Info.
Model NO.
JCF1530L 5AXIS
Control
CNC
Drive Type
AC Servo Drive
Application Materials
Wood, Styrofoam, EPS Foam, MDF, PVC, Acrylic...
Structure
Heavy Duty Steel Structure
Spindle Power
9kw
Auto Tool Changer
Linear Type, 8 Tools Ability
Table
Removable; T-Slot with Clamps
Flat Working Size
1500X3000X500mm;
Rotary Working Size
1000mm Diameter, 2500mm Length
Motor
Servo Motor
Inverter
Delta
Control System
5 Axis Syntec
Oil System
Automatic
Voltage
3 Phase, 380V, 50/60Hz
Option 1
3D Scanner
Option 2
Hot Wire Cutting Machine
Transport Package
20FT Container
Specification
standard
Trademark
CHAODA
Origin
Shandong, China
HS Code
8465990000
Production Capacity
100 Sets / Month
Product Description

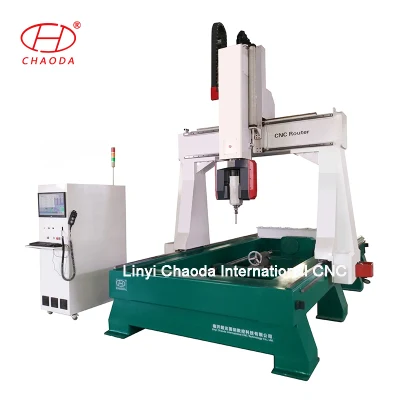

Factory Supply! Foam CNC Router 5 Axis / CNC 5 Axis Foam cutter
- All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability.
- Machine is with a big rotary device, can make different kinds of 3d sculptures, statues, figures, idols, landscapes, stage props, park designs, etc.
- Machine is with a flat table, can do deep flat works, like 3d reliefs, 3d molds, door furniture, acrylic words/letters, landscapes , etc.
- Spindle rotate from 0 to 180 degree, can make arc-surface milling, bending surface machining for 4D jobs, like special shaped arts, bended doors or cabinets, also can make horizontal milling, cutting and drilling works.
- With linear type automatic tool changer, spindle change tools automatically,no need manual work,keep good working accuracy and increased working speed.
| Model No. | JCF1530L 5AXIS |
| Flat working size | 1500*3000*500mm*180 degree |
| Rotary working size | 1000mm diameter, 2500mm length |
| Lathe bed structure | T-extrusion, Thick Steel frame |
| Table | Removable, T-slot with clamps |
| X structure | Rack and pinion, linear square rail |
| Y structure | Rack and pinion, linear square rail |
| Z structure | Ball screw, linear square rail |
| Reposition accuracy | ±0.02mm |
| Max. travelling speed | 0-60000mm/min |
| Max. working speed | 0-30000mm/min |
| Spindle | 9kw air cooling ATC spindle |
| Tool magazine | Linear type auto tool changer, 8 tools ability |
| Driving system | Japan YASKAWA servo motor and driver |
| Operating system | 5 axis Syntec with Screen |
| Operation language | G code |
| Working voltage | AC380V, 3-phase, 50Hz |
| Working materials | Eps foam, Styrofoam, Woods, MDF, Composite boards, Alucobond, PVC, Rigid plastics, Polyester, Fiberglass, Acrylic, Organic glass, Aluminum, etc. |
1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
