Product
Tube Laser Cutting Machines
Keywords
Ss Tube Cutting Machine
Transport Package
a 40hq Standard Container
Specification
8627*2230*2100mm
Trademark
HSG
Origin
China
Production Capacity
5000 Sets/Year
Product Description

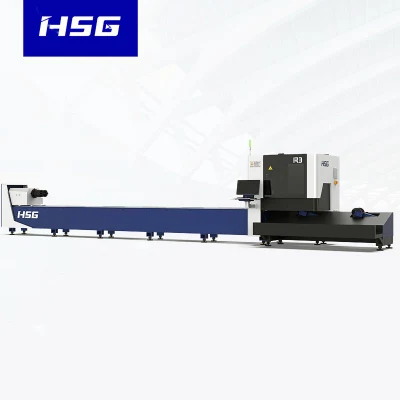

Fiber Laser Cutting Machine for Sheet Metal 12m long tube
R3 PLUS II is an economical tube cutting machine. It can deal with tubes made of mild steel, stainless steel, aluminum alloy, brass and red copper. Applications: metal furniture, office desk and chair, handrail, outdoor fitness equipment, display props, medical devices, etc.
Automatic loading and unloading devices are provided for all global users as optional features.
Economical Model
* Small size and small occupied area, improving the utilization of workshop
* Shipped in a 40HQ standard container with no need for metal plate removal
| Technical Parameters | R3 II | R3 PLUS II |
| Power | 1500-4000W | 1500-4000W |
| X/Y-axis Positioning Accuracy | ±0.03mm/m | ±0.03mm/m |
| X/Y-axis Repositioning Accuracy | ±0.03mm | ±0.03mm |
| No-load Speed | 90m/min | 90m/min |
| Acceleration | 0.8G | 0.8G |
| Rotating Speed of Chucks | 90r/min | 90r/min |
Tube Size | Φ20-Φ220mm £20*20-150*150mm | Φ20-Φ325mm 20*20-230*230mm |
| Length of Tube | 6000mm | 6000mm |
| Weight of Single Tube | 150kg | 200kg |
| Tailing Length | 85mm | 85mm |
| Overall Dimensions (L*W*H), with Loading Device | 10000*4500*2350mm | 10160*4600*2350mm |
1. Sales Champion among Economical Tube Laser Cutting Machines * Small size and small occupied area, improving the utilization of workshop
* Packed in 40HQ standard container with no need for metal plate removal
HSG-X9000 Bus CNC System
21.5-inch touch screen with concise interface
Real-time monitoring of core components and early warning if abnormal
Simple lines in favor of low failure rate
Auxiliary functions incl. tube error detection, welds check
Rich tube cutting library
* Bus refers to data transmission mode via on-site bus control system.
21.5-inch touch screen with concise interface
Real-time monitoring of core components and early warning if abnormal
Simple lines in favor of low failure rate
Auxiliary functions incl. tube error detection, welds check
Rich tube cutting library
* Bus refers to data transmission mode via on-site bus control system.
Double Pneumatic Chucks
* Detecting sensor for front and rear chuck opening & clamping, preventing possible collision
* Function of front chuck ventilation, for dust prevention from entry into chucks
* Front chuck avoidance cutting
R3 II: Φ20-220mm, 20*20-150*150mm, tailing length 85mm
R3 PLUS II: Φ20-325mm, 20*20-230*230mm, 22# channel steel, tailing length 85mm
* Detecting sensor for front and rear chuck opening & clamping, preventing possible collision
* Function of front chuck ventilation, for dust prevention from entry into chucks
* Front chuck avoidance cutting
R3 II: Φ20-220mm, 20*20-150*150mm, tailing length 85mm
R3 PLUS II: Φ20-325mm, 20*20-230*230mm, 22# channel steel, tailing length 85mm
KLINGE Autofocus Cutting Head
KLINGE, made of stainless steel, has a function of water cooling, dual-path cooling nozzle, ceramic ring, double focusing protective lens, drawer-type pluggable protective lens, focusing and collimating lens.
* Self-developed by HSG LASER
* Autofocus accuracy ±0.01mm
* Flow control for mirror-like surface cutting
* Prevent spark splashing and scalds by SS protective pipes
KLINGE, made of stainless steel, has a function of water cooling, dual-path cooling nozzle, ceramic ring, double focusing protective lens, drawer-type pluggable protective lens, focusing and collimating lens.
* Self-developed by HSG LASER
* Autofocus accuracy ±0.01mm
* Flow control for mirror-like surface cutting
* Prevent spark splashing and scalds by SS protective pipes
It is re-developed based on Solidworks and can carry out parts design, programming and auto nesting for open and closed graphics.
* Generate cutting trace automatically/by hands, intuitive analog simulation
* Built-in tube library, direct imports of assembly for programming, nest according to tube length and priority
* Reserve data interface to dock with other ERP/MES systems
Flying Cutting, Space Leapfrog
The industry's unique technologies, namely, tube cross-plane space leapfrog and flying cutting (patent No. ZL201810158585.8), simplify moving route of cutting head to the extreme, with no repeated lift or fall, therefore, its efficiency will be improved by 50%+ especially while cutting square tube.
The industry's unique technologies, namely, tube cross-plane space leapfrog and flying cutting (patent No. ZL201810158585.8), simplify moving route of cutting head to the extreme, with no repeated lift or fall, therefore, its efficiency will be improved by 50%+ especially while cutting square tube.
Strict in Quality Control before Delivery

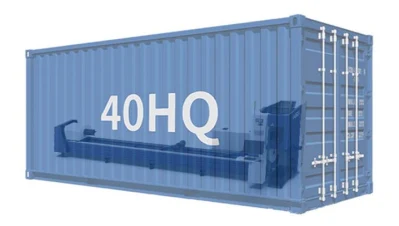

7. High-standard Package * R3 PLUS II is easily put in 40HQ standard container.
* To keep entire machine safe during long-distance sea transport, we adopt high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic film and filling foam.
