Basic Info.
Model NO.
1530
Warranty
2 Years
Customized
Customized
Layout
Horizontal
Cutting Material
Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
Automatic Grade
Automatic
Power Source
Electric
Cutting Mode
Plasma Cutting
Working Voltage
AC380/50Hz
Cutting Speed
0-15m/Min
Control Software
Startcam Software
Instruction Format
G Code
Motor and Driver
Stepper Motor (Servo Motor)
Plasma Source
Js, /Huayuan, / Hypertherm
Control System
FL2300b /Beijing Starare Control System
Guide
Taiwan Hiwin Guide
Working Size
1500*3000mm
Plasma Torch Height Controller
FL System
Working Table
Serrate Working Table
Transport Package
Wooden Box
Specification
plasma cutter 1530
Trademark
MINGCHEN
Origin
Jinan
HS Code
845601100
Production Capacity
100sets/Month
Packaging & Delivery
Package Size
375.00cm * 232.00cm * 139.00cm
Package Gross Weight
1200.000kg
Product Description

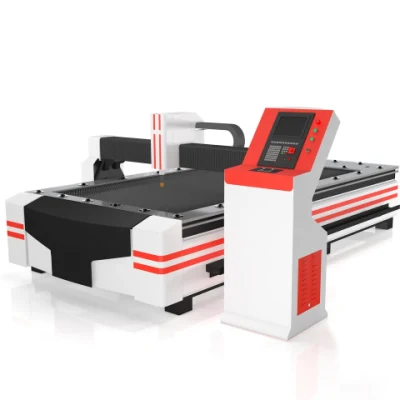

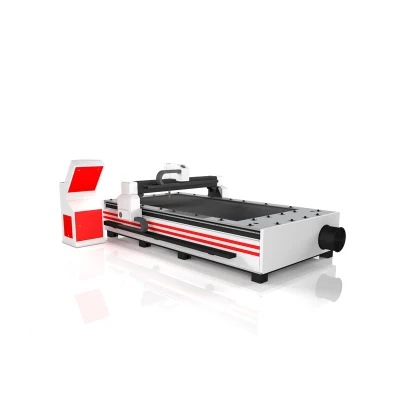

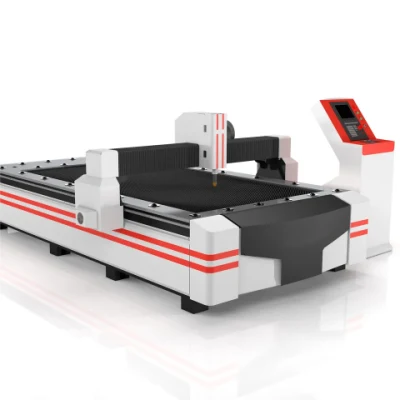

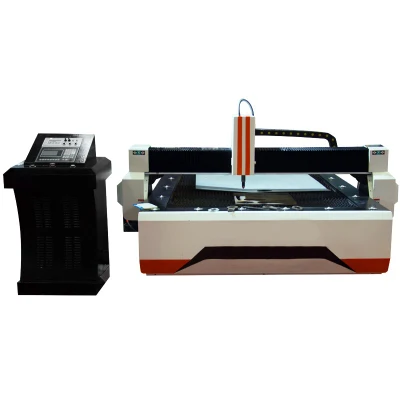

H Beam CNC Plasma Bevel Cutting Machine for Metal Fabrication Structure Profile Round Pipe / Square Tube Box / Channels / Angle Steel
1. Our machine adopt the iron cast heavy duty body frame, can ensure the machine whole working precision ,The cutting incision is thin and tidily and can avoid the second processing.
2. Water tank working table can be effectively absorb a large amount of smoke generated during the work.
3. Shanghai FL control system with the water mist function, it can ensure the cutting effect , ensure no black color on the cutting edge. especially for the stainless steel and aluminum
4. All of our metal plasma cutting machine with the bigger up-down device system .
1.The Suitable material:
This plasma cutter can work on Iron Plate, Aluminum sheet,Galvanized Sheet Stainless, Titanium plates etc. metal sheet and metal pipe can both cutting.
2.The application industries:
Cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, shipbuilding and other industries.
| Model | plasma cutter |
| Power source | China JS /Huayuan /Hypertherm |
| Control system | FL2300B control system With Arc Voltage device |
| Cutting speed | 0-15m/min(depending on material and thickness) |
| Transmission system | X, Y Taiwan Hiwin high-precision, zero clearance increased linear guide+rack, Z the arc voltage control |
| Positioning accuracy | ±0.05mm |
| Processing accuracy | ±0.35mm |
| Power supply | AC380/50HZ |
| Software support | STARCAM software |
| Instruction format | G code |
| Working table | Serrate working platform |
| Working pressure | 0.65-0.7Mpa |
After Service:
1. Warranty
24 Months warranty for this plasma cutter.Our customer will be fully trained for the operation and maintaining
technology after the order confirmed.Our engineer could train you on at our factory for free hour full after sales service our skilled engineer will help customer to solve the problem by MSN, SKYPE, QQ etc in time when problems happen, if necessary, overseas service is available.
2.Quality Control
Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure.All finished machine we delivered are 100% strictly tested by our QC department and engineering department.
3.Payment terms
30% T/T paid in advance as deposit, the balance paid before shipment.
Delivery Time
Within 15 working days for production after getting the payment Warranty Time
2 years (replace parts during warranty no human reason) Packaging Firstly, Packed the machine with plastic sheet for clearing and damp proofing,
Secondly, Then put machine in the plywood case for saftey and clashing.
Thirdly, Transport the plywood case into the container.
FAQ
QI: know nothing about the metal plasma cutter , what kind of machine I should choose?
Very easy to choose.
Just tell us what you want to do using this plasma machine. And sending us a sample picture is better. Then we will send
you a perfect solutions and suggestions.
Q2: When I get this machine, but I don't know how to use it. What should i do?We will send you the English manual and CD video for machine using and maintaining with machine. If you still have some doubts, we can talk by telephone or skype. Our engineer can also be sent to your country to install or adjust machine if
necessary.
Q3:if some problems happened to this cnc plasma cutter during warranty period, what should i do?
We will supply free parts for this machine during the warranty period if machine have any problems.We also supply free afterservice forever. So any doubts, just let us know, we will give you solutions within 30 min.
Any interested, Welcome inquiry anytime!
