- Overview
- Specifications
Basic Info.
Model NO.
VMC850
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control

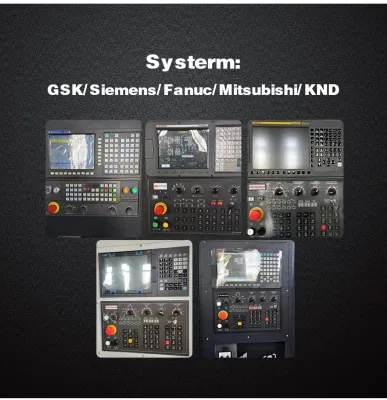

Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Color
Customzied
Weight
5000kg
X/Y/Z Rapid Traverse Speed
24/24/24m/Min
Distance Between Spindle Nose and Workta
120-600mm
Max. Worktable Load
500kg
Max. Spindle Speed
8000rpm(Optional:10000 )
Table Size
1100X500mm
Main Motor Power
11/15kw

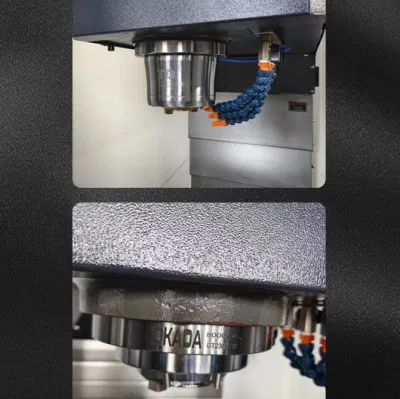

Spindle Taper
Bt40
Cutting Feed Speed
1-8000mm/Min
T Slot(Number-Width-Pitch)
5-18X90
X Axis Travel
1100mm
Y Axis
500mm
Z Axis
500mm
Tool Magazine
Arm 24
Transport Package
Wooden Case
Specification
2600cm * 2280cm * 2550cm
Trademark
wewoo
Origin
China
HS Code
8459619000
Production Capacity
300/Month
Packaging & Delivery
Package Size
2600.00cm * 2300.00cm * 2800.00cm
Package Gross Weight
5000.000kg
Product Description
| Specifications | Units | VMC850 |
| Table size | mm | 1100x500 |
| X axis travel | mm | 800 |
| Y axis travel | mm | 500 |
| Z axis travel | mm | 500 |
| Max. worktable load | kg | 500 |
| T slot(number-width-pitch) | 5-18x90 | |
| Max. spindle speed | rpm | 8000(Optional:10000 ) |
| Spindle taper | mm | BT40 |
| Main motor power | kw | 7.5/11 |
| X/Y/Z rapid traverse speed | m/min | 24/24/24 |
| Cutting feed speed | mm/min | 1-8000 |
| Guide rail type | Linear rail | |
| Distance from spindle axis to column surface | mm | 550 |
| Distance between spindle nose and worktable surface | mm | 120-620 |
| Positioning accuracy | mm | ±0.0075 |
| Repeat positioning accuracy | mm | ±0.005 |
| Tool magazine | Arm 24 | |
| Max. tool diameter | mm | φ78( Adjacent)/ φ120(Apart) |
| Max.tool weight | kg | 8 |
| Machine weight | kg | 5000 |
| Overall dimension | mm | 2600*2280*2550 |
