Basic Info.
Model NO.
PSC200----800C
Certification
CE, ISO9001:2008
Transport Package
Standard Export Package
Trademark
Dongshen
Origin
Zhejiang, China(Mainland)
HS Code
8477800000
Production Capacity
30 Units Per Month
Product Description

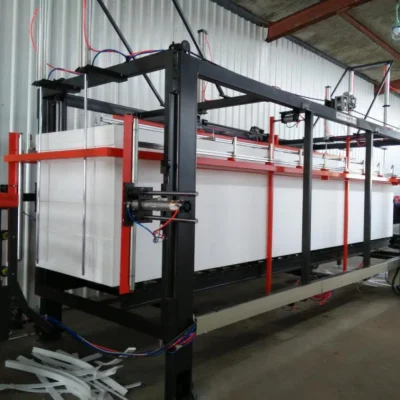

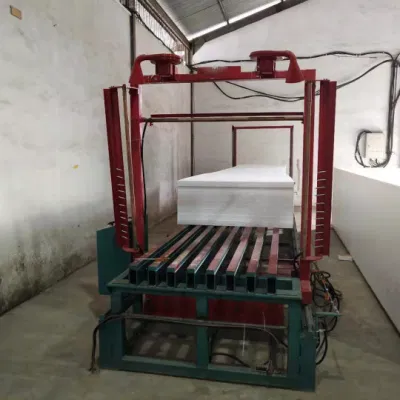

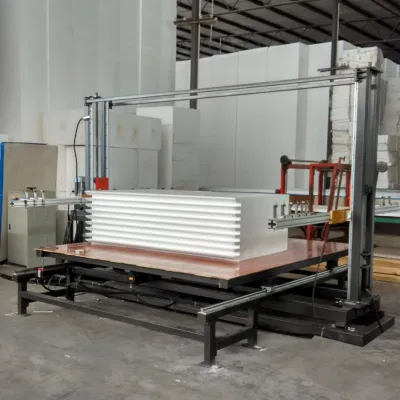

EPS Cutting Machine is used to cut EPS blocks to desired sizes. It's hot wire cutting. C type Cutting machine can do horizontal, vertical, down cutting. Multiple wires can be set at one time for down cutting to increase cutting efficiency. Machine operation is done on control box, and cutting speed is converter controlled.
Main Features
Main Features
1. The main frame of the machine is welded from square profile steel, with strong structure, high strength and no deformation;
2. The machine can make horizontal cutting, vertical cutting and down cutting automatically,but wires setting is done by hand.
3. Adopts 10KVA multi-tapped special transformer for adjustment with wide adjustable range and multiple voltages.
4. Cutting speed range 0-2m/min.
| DSQ3000-6000C Block Cutting Machine | |||||
| Item | Unit | DSQ3000C | DSQ4000C | DSQ6000C | |
| Max block size | mm | 3000*1250*1250 | 4000*1250*1250 | 6000*1250*1250 | |
| Heating Wires Amount | Horizontal Cutting | pcs | 60 | 60 | 60 |
| Vertical Cutting | pcs | 60 | 60 | 60 | |
| Cross Cutting | pcs | 20 | 20 | 20 | |
| Working Speed | M/min | 0~2 | 0~2 | 0~2 | |
| Connect Load/Power | Kw | 35 | 35 | 35 | |
| Overall Dimension (L*W*H) | mm | 5800*2300*2600 | 6800*2300*2600 | 8800*2300*2600 | |
| Weight | Kg | 2000 | 2500 | 3000 | |
