Basic Info.
Model NO.
KJZD-1625
Mechanical Precisio
<0.01mm
Supported Software
Coreldraw, Autocad
Work Plate
2500mm*1600mm
Machine Size
3260*2120*1315mm
Cutting Speed
0-1500mm/S
Transmission Interface
Cable Transmission
Supported Format
Pxf Plt
Fan Power
9kw
Material Fixed Mode
VAC-Sorb
Driving Mode
Racking Drive
Support File Forma
Dxf, Plt
Transport Package
Packed in Wooden Cases
Specification
KJZD-1625
Trademark
kangjia
Origin
China
HS Code
8453100000
Production Capacity
100 Sets / Month
Product Description

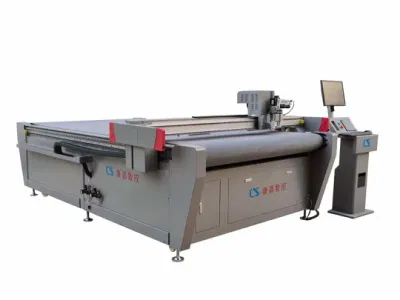

Kangjia 1625 CNC Automatic Cloth Vibration Knife Fabric Cutting Machine Price
Model: KJ-1625 Machine size can be customized
Brand: KANGJIA
Applicable cutting materials:different kinds of soft materials, sucha as car mats, car seat, PVC, embroidery accessories, foam composite material, XPE, coiled mats, leather, silicone, rubber, truck tarpaulin, cardboard, plastic board, Grey board, white board, gasket,etc
Application: widely used in automotive interior industriy,garment, shoe, bag, packaging industry and advertising industry.

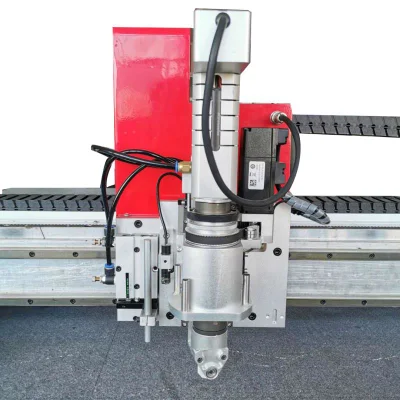

Functions: cutting(oscillating cutting tool)

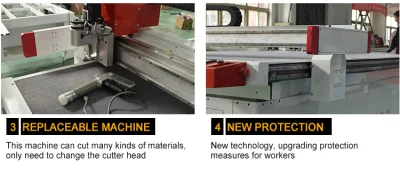

Optional cutting tool: the cutting tool is optional according to customer's requirements, such as rotary cutting tool, punching, v-cutting tool, creasing wheel,milling cutting tool.
Features: Oscillating knife cutting, fast speed, high efficiency; saving material and labor, more convenient and easier to operate for user.
Features:

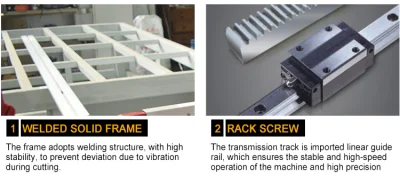

1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance;
2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life;
3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.
4. Kangjia digital cutting machine was designed easy to install, set-up and operate;
5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;
6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;
Technical data:
Product Advantage:
1. Environmental protection, no smoke & no smell.
2. High Efficiency, the cutting speed can reach max. 1500m/s (per material), save time and worker cost.
3. Beautiful appearance, no yellow edge & rough selvedge after cutting.
4. Multifunctional cutting, support abnormity cutting, apply for many industries.
5. Wide range of applications: garment industry, automotive interior (floor mat, seat cover etc.), advertise industry, furniture industry (sofa), leather industry, clothing industry etc.
B. You can come to our factory for training. We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments all sorts of tools and testing facility,we will also provide accomadation during training period. Training Time: 1-10 working days.
Packaging & Shipping:
Company Show:
Exhibition:
Certificate:
Why Choose Us?
Model: KJ-1625 Machine size can be customized
Brand: KANGJIA
Applicable cutting materials:different kinds of soft materials, sucha as car mats, car seat, PVC, embroidery accessories, foam composite material, XPE, coiled mats, leather, silicone, rubber, truck tarpaulin, cardboard, plastic board, Grey board, white board, gasket,etc
Application: widely used in automotive interior industriy,garment, shoe, bag, packaging industry and advertising industry.
Functions: cutting(oscillating cutting tool)
Optional cutting tool: the cutting tool is optional according to customer's requirements, such as rotary cutting tool, punching, v-cutting tool, creasing wheel,milling cutting tool.
Features: Oscillating knife cutting, fast speed, high efficiency; saving material and labor, more convenient and easier to operate for user.
Features:
1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance;
2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life;
3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.
4. Kangjia digital cutting machine was designed easy to install, set-up and operate;
5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;
6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;
Technical data:
| Model | KJCT-1625 (can be customized) |
| Fan power | 9kw |
| Voltage | 110V/220V/380V±10%,50HZ 60HZ |
| Working characteristic | Computer operation and cutting machine at the same time,complete data transmission quickly,can be used continuously |
| Cutting speed | max. 140m/min |
| Cutting thickness | 0.1-50mm |
| Effective cutting area | 2500mm*1600mm |
| Cutting accuracy | ±0.1mm |
| Overall dimension | 3260*2120*1315mm |
| Cutting materials | Corrugated paper,plastic corrugated sheet,grey board,ivory board,film,composite materials,leather ,fabric,slab rubber,pear wool,sponge,KT board ets. |
| Multifunctional head for different cutter | Half knife, full knife, punching roller, V-cutter, milling knife, pneumatic knife, eletric knife, Circular knife (round knife / rotary knife); pin |
| Location mode | Infrared laser |

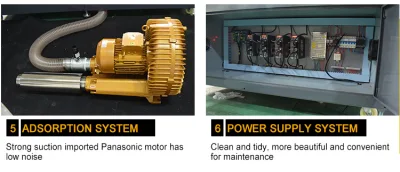

| Material fixed mode | absorption |
| Transmission interface | Network transmission |
| Compatible software | Kangjia intelligent software |
| Control system | LED touch screen |
| Driving mode | Racking drive |
| Drive motor | Panasonic/Fuji/Yaskawa optional |
| Guide rail | Brand :Yintai |
| Body structure | Body welding |
| Suction case | Aluminum case |
| Certification | CE/SGS,ISO9001/ISO14001/ISO18001 |
| Safety device | Mechanical anti-collision device/infrared radiation |
Product Advantage:
1. Environmental protection, no smoke & no smell.
2. High Efficiency, the cutting speed can reach max. 1500m/s (per material), save time and worker cost.
3. Beautiful appearance, no yellow edge & rough selvedge after cutting.
4. Multifunctional cutting, support abnormity cutting, apply for many industries.
5. Wide range of applications: garment industry, automotive interior (floor mat, seat cover etc.), advertise industry, furniture industry (sofa), leather industry, clothing industry etc.
Training to install (2options):
A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting.B. You can come to our factory for training. We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments all sorts of tools and testing facility,we will also provide accomadation during training period. Training Time: 1-10 working days.
Packaging & Shipping:
Company Show:
Exhibition:
Certificate:
Why Choose Us?
1. Saving labour and material cost
2. Saving time
3. Everyone can operate and cut without lots of skills
4. Boost production capacity
5. Consistent accuracy even with complicated patterns
6. Reduces your lead times of pattern cutting from your clients
7. Wide range of clothes/garment/apparel material application
8. Running in a high automaton
9. Special design: less moving structure guarantee low down time and easy in installation and maintain
10. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
11.Good experienced engineers
12. CNC control
13. Knife cutting method: oscillating Blade with multifunctional tool heads
14. Easy conversion
15. With more and more agents / partner joining us, after sales team can be in your country by your side.
RFQ
Q: 1. How can I choose a suitable Knife cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut? Are they rolled or not? Breathable or not?
2)What's the largest size of original materials?
3)What's the thickness of materials?
4)Excepting for cutting, do you need more functions, like drawing, punching holes, scanning, feeding, CCD camera, etc.?
Q: 2. Can you design a machine for me depending on my requirements?
A: Of course, we will give our professional suggest and discuss details with you for the machine which matches all the requests with best cost performance.
Q: 3. What should I do if the machine has any problem in future?
A: We supply online/phone technical support and door to door service. Anything confuse or not goes well, pls contact us in the first time.
Q: 4. What's the warranty policy?
A:Standard warranty is 12 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved, but not for free.
We also supply life long after-sales service. No matter when, you can count on our best service for your machine.
Q: 5. If I don't know this machine before, how can I operate it?
A: We supply face to face training and provide operating video, user manual, and telephone calls to help.
It's easy to learn, one inexperience people can learn it within one day.
2. Saving time
3. Everyone can operate and cut without lots of skills
4. Boost production capacity
5. Consistent accuracy even with complicated patterns
6. Reduces your lead times of pattern cutting from your clients
7. Wide range of clothes/garment/apparel material application
8. Running in a high automaton
9. Special design: less moving structure guarantee low down time and easy in installation and maintain
10. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
11.Good experienced engineers
12. CNC control
13. Knife cutting method: oscillating Blade with multifunctional tool heads
14. Easy conversion
15. With more and more agents / partner joining us, after sales team can be in your country by your side.
RFQ
Q: 1. How can I choose a suitable Knife cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut? Are they rolled or not? Breathable or not?
2)What's the largest size of original materials?
3)What's the thickness of materials?
4)Excepting for cutting, do you need more functions, like drawing, punching holes, scanning, feeding, CCD camera, etc.?
Q: 2. Can you design a machine for me depending on my requirements?
A: Of course, we will give our professional suggest and discuss details with you for the machine which matches all the requests with best cost performance.
Q: 3. What should I do if the machine has any problem in future?
A: We supply online/phone technical support and door to door service. Anything confuse or not goes well, pls contact us in the first time.
Q: 4. What's the warranty policy?
A:Standard warranty is 12 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved, but not for free.
We also supply life long after-sales service. No matter when, you can count on our best service for your machine.
Q: 5. If I don't know this machine before, how can I operate it?
A: We supply face to face training and provide operating video, user manual, and telephone calls to help.
It's easy to learn, one inexperience people can learn it within one day.
