Basic Info.
Model NO.
HND500A/HL Hot Wire Foam Cutting Cnc Machine
Processing Precision
<0.012
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Precision
High Precision
Processing Method
Spark Working
Type
Wire Cutting
Voltage
Customized, 380V 50Hz
Transport Package
1PC/Plastic Film or Wooden Case
Specification
2055*2100*2150mm
Trademark
Zhenyue / OEM / ODM
Origin
China
HS Code
8461500090
Production Capacity
500sets/Month
Product Description

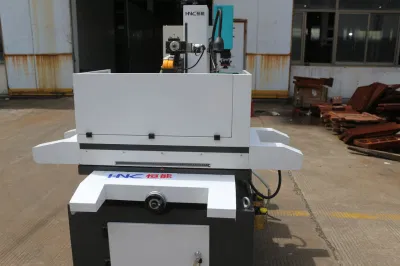

Zhenyue Manufacturers Wholesale Hot Wire Foam Cutting Cnc Machine
Main Feature :
-It supports the machining of alloy steel, nonferrous metal, the materials of the poor conductivity.
-It cuts vertical prupose v-shaped diamond wire retaining delevice. It does not need hole-punching in wire feeding and traveling. Cutting taper or progressive die uses hole-punching type wire retaining device.

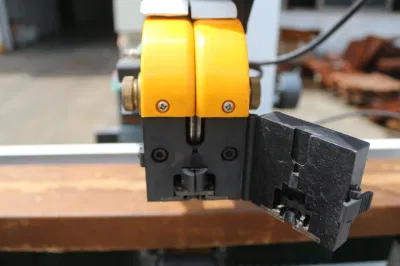

-Large guide-wheel electric supply machanism: It integrate electric supply module. The guide-whee hase long service life, and be propitious to reduce disturbing wire tension.
-guide-wheels with water-filter type keep the machine clean.
-Using HL luxurious floor to ceiling panels, interior space, good heat dissipation and stable performance.
Zhenyue Group is a specialized company engaging in the Research, Development ,Production and Sales of Mechanical and electrical integrated products.
There are mainly five product series Including: CNC Miller, Machining Center, Plastic Injection Molding Machine, CNC wire cutting Machine, CNC Electrical Impulse.
In recent years Zhenyue has got honours in succession, e.g."One of Top Hundred Key Enterprises in Ningbo", "AAA Credit Company in Ningbo", ETC.
Zhengyue products won HI-tech Prize and New Product Prize of the Municipal ,Provincial and State Level. The total construction scale of Zhengyue reaches to 66,000 square meters. With a first-class managing center ,it now has over 500 workers and staffs, among which 30% are R&D personnel. This R&D team allows Zhenyue to develop new products with the worlds most advanced technology.
After-Sale Service :
1. Technical files service provided.
2. On-site training service provided.
3. Free training course at our plant.
4. Lifetime maintenance free of charge.
5. Technical support online service provided.
6. Spare parts replacement and repair service provided.
7. We will provide the consumable parts at an agency price when you need replacement.
FAQ :
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
Ningbo Zhengyue Machinery Co.,Ltd.
ADD: Room 507-508, No.39 Lane 158, Huangcheng West Road, Ningbo China.
Zip Code:315000
zhenyuemachinery.en.made-in-china.com
Main Feature :
-It supports the machining of alloy steel, nonferrous metal, the materials of the poor conductivity.
-It cuts vertical prupose v-shaped diamond wire retaining delevice. It does not need hole-punching in wire feeding and traveling. Cutting taper or progressive die uses hole-punching type wire retaining device.
-Large guide-wheel electric supply machanism: It integrate electric supply module. The guide-whee hase long service life, and be propitious to reduce disturbing wire tension.
-guide-wheels with water-filter type keep the machine clean.
-Using HL luxurious floor to ceiling panels, interior space, good heat dissipation and stable performance.
| HND500A/HL | PARANETER | Unit | |
| Electrical Specification | |||
| Input Voltage | V | 380 | |
| Max.input Power | KW | <1.5 | |
| Max.output Current | A | 6 | |
| Max.material Removal Rate | mm³/min | 160 | |
| Best Surface Finishing | um | Ra≤1.2 | |
| Machinery Specification | |||
| Work Table Size | mm | 1050*630 | |
| Work Table Stroke | mm | 800*500 | |
| Max.machining Thickness | mm | 800 | |
| Max.workpiece Weight | kg | 800 | |
| Max.cutting Width | mm | ±3°/150 | |
| Wire Electrode Diameter | mm | 0.12-0.2 | |
| Wire Traveling Speed | m/s | 0.8-11 | |
| Machining Accuracy | mm | ≤0.12 | |
| Machine Weight | kg | 1950 | |
| Machine Size(w*d*h) | mm | 2055*2100*2150 | |
| Operating Liquid Water-tank | L | 60 |
