Basic Info.
Model NO.
GSII-L1530-PMAX-105A
Rated Power
7.5kw
Plasma Power
Hypertherm Powermax105 USA
Gantry Type
Table
Effective Cutting Area(Length)
1500mm
Effective Cutting Area(Width)
3000mm
Run Speed
4000mm/Min
Cutting Positioning Accuracy
+-0.5mm/M
Surface Roughness
Ra≤25μm
CNC Controller
Ai, Dst, Dwg, Dxf, Dxp, Las
Servo Motor
Software Supports Hprxd and True Hole
Transport Package
Wooden Cases for CNC Press Brake
Specification
4500x1900x2750mm
Trademark
Accurl
Origin
China
HS Code
84622990
Production Capacity
30 Set/Month
Product Description

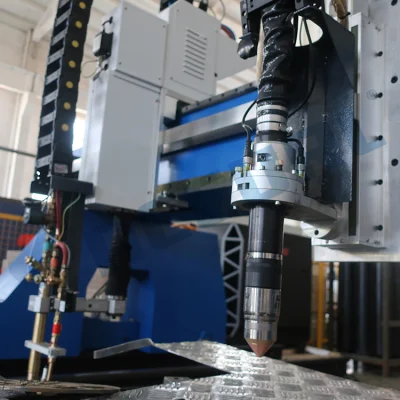

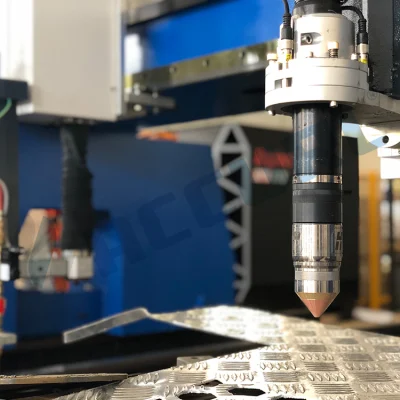

Accurl CNC Plasma Cutting Machine for Sale
CNC FLAME AND PLASMA CUTTING MACHINE
ACCURL® plasma cutting machine continues to provide wide and flexible solutions with its low investment and operation cost advantages, being appropriate to production lines and automation, improved accurate cutting quality. The CPL series will be profit center of your workshop by its minimum maintenance and consumable part costs and not losing the accuracy for many long years
Advantages+
* High cutting technology.
* Minimum operating cost
* EDGE® Connect System (Hypertherm/USA)
* Arc Glide™ THC automatic height control system
* HyDefinition® technology
* PowerPierce™ technology
* LongLife™ technology
* HyPerformance® HPR-800XD® plasma source
* TurboNest® nesting software.
* The best choice for plasma with its high productivity and accurate cutting quality.
EPS Plasma 3 Axes Series
* It offers the optimum solution to all your needswith its advanced accurate cutting quality,production line and automation.Special plasma software and CNC controllerenables the operator to use the machine with ease.
* Thermal cutting machinesseries are used in industrial enterprises in the procurement industry. Themachine can be used as an independent product with individual service, and aspart of the flow-mechanized lines with appropriate support.
* It offers the optimum solution to all your needswith its advanced accurate cutting quality,production line and automation.Special plasma software and CNC controllerenables the operator to use the machine with ease.
* Thermal cutting machinesseries are used in industrial enterprises in the procurement industry. Themachine can be used as an independent product with individual service, and aspart of the flow-mechanized lines with appropriate support.
FUME EXTRACTION SYSTEM(Optional)
* Used to eliminate dust, particles and harmful fumes generated during cutting. It is fully automatic dust collecting shake filter.
* Used for the collection of dust, particles and fumegenerated during cutting.
* Increased airflow by oval cartridge filters.
* Nanofiber Ultraweb Media to filter more efficiently than filters with standard cellulose / polyester blend media.
* Self cleaning
* DF PRO 9 ( 8000m3/h) or DF PRO 6 (8000m3/h) models can be used according to sizes of machines.
* Used for the collection of dust, particles and fumegenerated during cutting.
* Increased airflow by oval cartridge filters.
* Nanofiber Ultraweb Media to filter more efficiently than filters with standard cellulose / polyester blend media.
* Self cleaning
* DF PRO 9 ( 8000m3/h) or DF PRO 6 (8000m3/h) models can be used according to sizes of machines.
TBEVEL HEAD SYSTEM-IMA/ITALY(Optional)
Take -th 5e Axoiust Cuotft incgos Htlye ad (Optional) secondary operations such as grinding weld preparation with 5-axis Cutting Head.
This plasma cutting bevel system is capable of cutting all bevel preparation as bevel pipe hole,sharp bottom & top Blind bevel,cone bevel, V, X, Y and K bevel cuttings.
EDGE® NEW CONNECT CONTROLLER
Customized shape cutting control:
This is the next generation of Hypertherm's industry leading automated control systems. It includes Hypertherm's embedded cutting expertise combined with cutting machine OEM customizability. EDGE Connect offers many new software features, enhanced hardware, and field based system configuration capabilities.
SureCut:
SureCut™ allows customers to maximize performance through embedded expertise. It is brought to you via various delivery mechanisms that include Hypertherm® CAM software, CNCs, and cutting systems.
PLASMA SOURCE
| SPECIFICATIONS FOR CNC PLASMA CUTTING MACHINE | |||
| No. | Name | Value | Unit |
| 1 | Table Width | 1500 | mm |
| 2. | Length Table | 3000 | mm |
| 3. | Under Torch Height | 150 | mm |
| 4. | Width Machine | 2350 | mm |
| 5. | Length Machine | 4450 | mm |
| 6. | Height Machine | 1750 | mm |
| 7. | Height Table | 850 | mm |
| 8. | X Axis | 1500 | mm |
| 9. | Y Axis | 3000 | mm |
| 10. | Weight | 3550 | Kgs |
| 11. | Max (X-Y)Positioning-speed | 30 | m/min |
| 12 | Total Power consumption(without Plasma system ) | 4 | Kw |
