Product Description
advantages of Cardboard Knife Cutting Plotter Digital Printing Machine Die Cutting Machine Cardboard Cutting

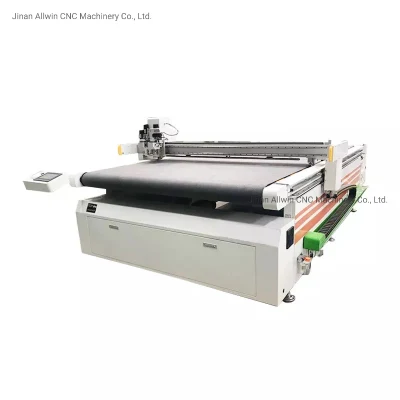

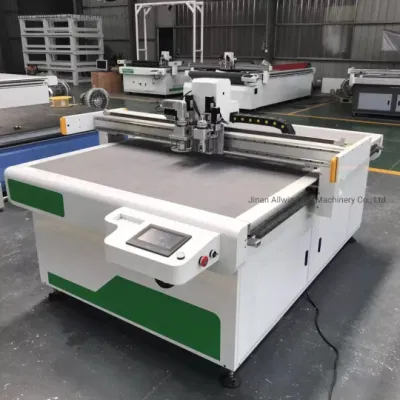

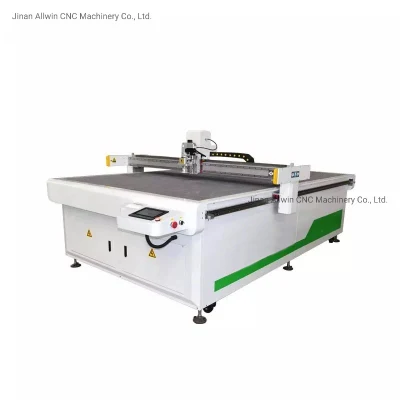

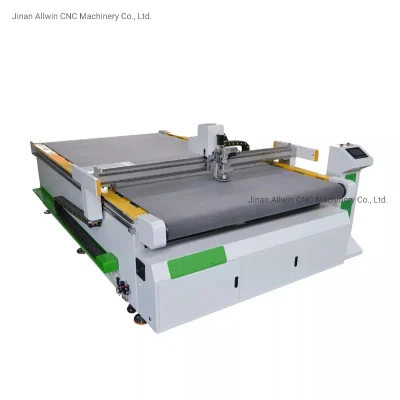

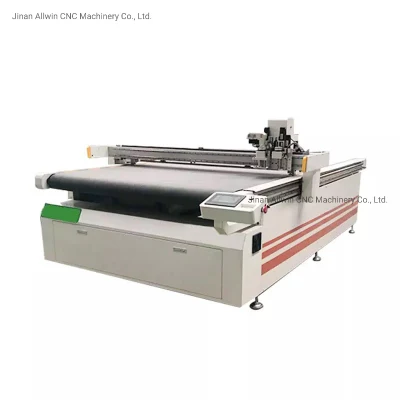

ALLWIN CNC oscillating knife cutting machine, your professional choice for cutting 5D/7D car mat.
Our machine recognize DXF/PLT format from computer, dieless cutting supply the most flexibility, it can cut any shapes and sizes quickly and perfectly.
Also, there's no need for the machine to rest or cooling, 24 hours continuous and efficient working is promised.
It can cut low-layers at one time, or cutting unlimited in length with auto feeding and cradle.
Physical cut don't react with materials, so no smoke and smell will produce during cutting.
Our machine is easy to learn and operate.
Hot sale cardboard knife cutting plotter digital printing machine die cutting machine cardboard cutting With ISO
Future maintain is easy and safe.
| Model | AL-D2516/AL-S2516 |
| working area | 1600*2500MM |
| Machine size | 3450×2300×1250MM |
| Rated power | 9kw |
| Fixed model | Flated working table |
| Multifunctional head | Swiss imported knife: with vibration full cutting, vibration half cutting and cursor location function. |
| Safety device | Using infrared sensors, responsive, safe and reliable. |
| translational velocity | 800-1200mm/s |
| Cutting thickness | 200-800mm/s(according to different cutting materials) |
| Cutting materials | Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber |
| Repeated accuracy | ≤0.1mm |
| Transmission system | imported(Digital servo motor, linear guide, synchronous belt, ball screw) |
| Instruction system | HP-GL compatible format |
| Voltage | 380V±10% |
| Other configuration | Japanese Yaskawa servo motor,Germany imported conveyor belt, vacuum table, auto feeding, Taiwan Hiwin rail, 7.5kw vacuum pump |
| Cutting material | All kinds of textile,fabric,leather,toilet seat, carpet seat,paper, grey cardboard, KT board, PVC expansion sheet, honey comb plate, light slide, PP gum, car sticker, flag fabric, EPE foam, foam, arcylic etc. |
| Effective Cutting Area | 2500mm*1300mm 1200mmx900mm 2500mm*1600mm 1100mm*1300mm 1800mm*1600mm |
cutting sample for cnc digital plotter cutting machine(flatbed cutting machine)
Features--Vibrate Knife Cutting Machine
1.Laser emergency stop device, four laser beams, as long as the laser beam is blocked, the machine automatically stops working, to avoid the human body being touched by the moving tool head or cardboard raised and stuck the tool head. The signal line is placed in the crossbeam of the nose, so the machine runs more stably.
2.Taiwan's imported linear guideway with belt drive ensures high-speed operation of the machine while cutting smoothly to achieve rapid and accurate cutting.
3.The steel frame designed by the machine adopts high density steel plate, which is not easy to deform, and the weight of the whole machine is increased. It ensures the stability of the machine and the better effect when the machine is cut.
4.The cabinet is structured and wiring is clear, which can prevent the interference of strong electricity and weak points and maintain the stability of the machine.
5.Motors and drives adopt Taiwan Delta driver and all motors are fully digital.
6.With modular working cylinder, the table surface has strong adsorptive force.
