New Fully Automatic Horizontal Blade Cutting Various Irregular Foam Shapes with a Wire Knife and with Rotary Machine by CE\SGS
Introducing the New Fully Automatic Horizontal Blade Cutting Various Irregular Foam Shapes with a Wire Knife and with Rotary Machine by CE\SGS. We are a factory specializing in precision foam cutting. Contact us for a quote today!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
BFXQ-3
Cutting Precision
±0.5mm
Blade Size
0.5mm*3.0mm*2300mm
Blade Pressure
0.6MPa
) Vibrating Tool Linear Speed
3000mm/S
) Total Motor Power
5.0kw
Transport Package
Well Protected Package
Specification
CE\SGS
Trademark
BCD bedding machinery
Origin
Nanjing, China
HS Code
84774090
Production Capacity
30 Sets/Month

Product Description

FOAM HORIZONTAL CUTTER MACHINE
( Rotate worktable H3 )
New Fully Automatic Horizontal Blade Cutting Various Irregular Foam Shapes with a Wire Knife and with Rotary Machine by CE\SGS

H3 Application area:  It can cleanly cutting any ideal
                  geometric profile.
                    It can be used in Automotive industry, Furniture industry, Packing industry, Building industry, Daily commodity and so on.
Cutting material:  Foam,PU soft foam,sticky foam,latex,Rebond
 foam, Polyethylene foam.


Performance overview:
The automation of this equipment is highly , it is able to complete some of the basic cutting requirements,The Rotate worktable can rotate without limit .

Cutting graphics: New Fully Automatic Horizontal Blade Cutting Various Irregular Foam Shapes with a Wire Knife and with Rotary Machine by CE\SGS
New Fully Automatic Horizontal Blade Cutting Various Irregular Foam Shapes with a Wire Knife and with Rotary Machine by CE\SGS
New Fully Automatic Horizontal Blade Cutting Various Irregular Foam Shapes with a Wire Knife and with Rotary Machine by CE\SGS
New Fully Automatic Horizontal Blade Cutting Various Irregular Foam Shapes with a Wire Knife and with Rotary Machine by CE\SGS
New Fully Automatic Horizontal Blade Cutting Various Irregular Foam Shapes with a Wire Knife and with Rotary Machine by CE\SGS
New Fully Automatic Horizontal Blade Cutting Various Irregular Foam Shapes with a Wire Knife and with Rotary Machine by CE\SGS

It is suitable for cutting block product ;it can cutting Pyramid-shaped with the rotate worktable;wavilness;irregular shape ;and any two dimensions and the simple three dimensions geometric profile .

H3 Technical date:
  Standard Option
Length of the foam block 2200mm 2300mm
Height of the foam block 1250mm 1500mm
Width of the foam block 2200mm 2300mm

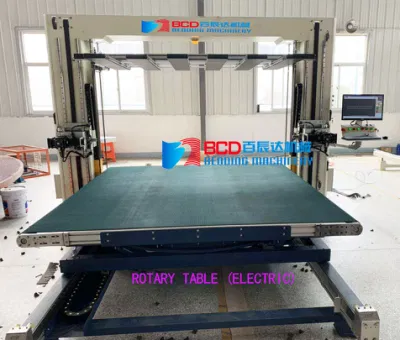

Work table Rotating work table
AC power 380V 3phase 4 wire
Total power 5KW
Cutting precision ±0.5mm
Cutlery -Pressure of the knife is 6 bar
-Itinery of the knife is 48mm50Hz
-Size of the knife is 0.5mm*3mm*2300mm
-Vibrating speed is 3000t/minute
Operatiing option -modulator demodulator(can do remote diagnosis and maintenance)

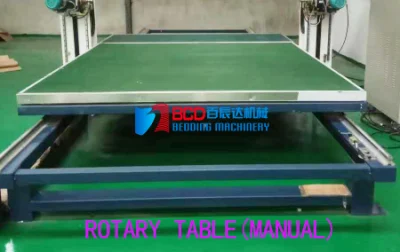

-man controlled rotating work table
-automatic programming software
-computer console
-Absolute value of the system
-Automatic adjusting the angle
-Hanging control panel (optional)
Max cutting speed Depending on different materials, the max cutting speed is 15m/minute
Delivery date 25Days After receipt of prepayment.


The FOB Price above is not including the Engineer's A round-trip ticket and accommodation, to your factory to install the machine.
After-sale service:
Our foam cutting machine warranty period of one year.

In guarantee period, wearing parts can be provided free of charge, but shipping from the buyer.

We can also provide on-site technical services, personnel costs, travel by the buyer.
