Basic Info.
Model NO.
PE-F1000-3015
Cooling System
Water Cooling
Technical Class
Pulse Laser
Applicable Material
Metal, Stainless Steel, Aluminum etc
Structure Type
Gantry Type
Laser Classification
Solid Laser
Laser Technology
Laser Vapor Cutting
Control
CNC
Current
AC
Laser Type
Fiber Laser
Usage
Metal
Product Name
Metal Cutting Machine
Gross Weight
3000kgs
Working Area
3000*1500mm, 2500*1300mm, 2000*4000mm
Power
300W, 500W, 800W, 1000W, 1500W, 2000W
Voltage
220V/380V/460V
Leading Time
30 Working Days
Transport Package
Wooden Case with Exporting Standard
Specification
ISO 9001 & CE
Trademark
Perfect Laser
Origin
China
HS Code
8456110090
Production Capacity
1000 Sets/ Month
Packaging & Delivery
Package Size
450.00cm * 225.00cm * 228.00cm
Package Gross Weight
3000.000kg
Product Description

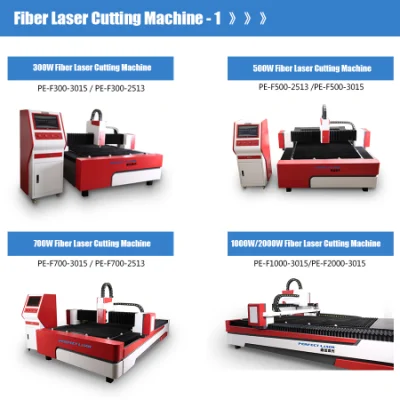

Perfect Laser-500W 1kw 2kw 1000W 3000W 3015 Ipg/Raycus/Max CNC Metal /Stainless Steel/Iron/Aluminum/Copper/SS/MS Plate Fiber Laser Cutter Cutting Machine Price
(Model:PE-F3015)
Perfect Laser, professional Metal Cutting Machine manufacturers, with advanced metal laser cutting machine equipment, first-class technology, quality service, get good reputation in fiber laser cutting machine equipment industry.
In order to meet the needs of customers for cutting metal pipe and sheet, Perfect Laser launched the Metal Cutting Machine (Model:PE-F3015). This cutting machine is adopted the Taiwan famous screw guide, Panasonic servo and drive, the cutting machine can improve the working efficiency greatly. And the pipe diameter of cutting machine can up to 200mm (can be customized according to customer needs ). Moreover, the cutting machine unique design with rotary auxiliaries can solve the technical problems for cutting pipe and sheet.
* High cutting speed: 2-3 times faster than YAG or Co2 laser
* Long lifetime span: laser source lifetime over 10 years with stable performance.* High cutting accuracy: Finest laser beam up to 0.01mm
* Low maintenance: Almost totally free of Maintenance
* Most advance cutting machine on the world
Metal Fiber Laser Cutting Machine Videos
Company introduction video: https://youtu.be/YGNUtIib-pw
Fiber laser cutting metal plate: https://youtu.be/fpGB1KWOF4o
Fiber laser cutting pipe tube: https://youtu.be/sGoaUh_g6SM
This optic fiber laser cutting machine can effectively cut pipe, square tube, rectangular tube, oval tube, parallel oval tube, D-tube and other styles of pipe.

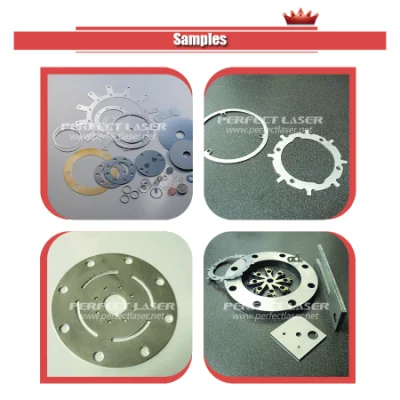

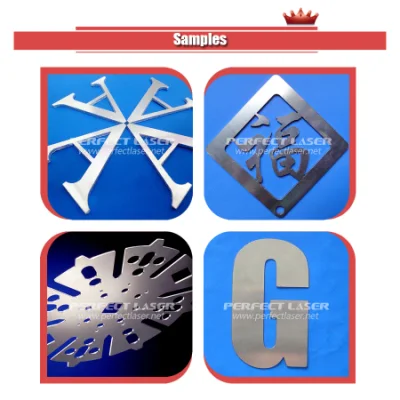

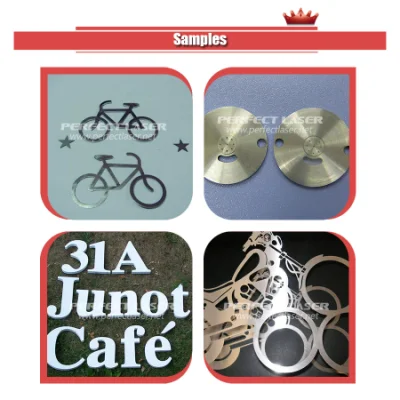

1. Main Processing Materials
Stainless steel, carbon steel, manganese steel, galvanized sheet, all kinds of alloy plate and rare metals.
2. Main Application Industry
Sheet metal industry, kitchenware industry, elevator mobile phone industry, advertising industry, chassis cabinet industry, machinery parts processing industry, precision machining industry, automobile manufacturing industry, daily light industry, agricultural machineryand food machinery industry, hardware bathroom industry, Medical fitness equipment industry.
| Name | Fiber Laser Cutting Machine |
| Model | PE-F3015 500W (800W1000W2000W) |
| Maximum run speed | 90m/min |
| Laser Wavelength | 1080 m |
| Minimum cutting line width | 0.1mm |
| Rated output power | 50--2000W |
| X, Y-axis positioningaccuracy | ≤±0.01mm |
| Repeated positioning accuracy of the table | ≤±0.01mm |
| The maximum load of the workbench | 800KG |
| Effective processing format | 1500*3000mm |
| Z-axis travel | 120mm |
| Volume | 4.6*2.3*1.8m |
| Power | 12KW |
| Water cooler | 2KW |
| Electricity power | 380v 50Hz±10% |
| Red light spot position | yes |
| Auxiliary gas | Oxygen, nitrogen |
Fiber Laser Cutting Machine Details
1.The fiber laser cutting mchine's controller with a touch screen operating system:Fiber laser controller installed on the computer.
Ytterbium laser cutting system, automatic optimized cutting path calculation, industrial computer installed software;
Touch screen operation system to control the laser head (adjust the distance between the laser head and metal material); wireless control handle can control the laser cutting head movement trajectory.
2.The fiber laser cutting mchine is adopts Lasermach(USA) and PRECITEC(Germany ) automatic focus laser cutting head (metal sensor) :Laser cutting head nozzle contact metal plate surface, cutting head automatically move up and down, high sensitivity, good stability. No obvious spark phenomenon.
3.The metal laser cutter with 3HP high-power water chillers: adopts water cooling method to keep the laser head always work in constant temperature(plus or minus 5 degrees), to ensure the the stability and fast operation of the laser.
4.The fiber laser cutting mchine with Raycus 1000W (IPG1000W) fiber laser generator:photoelectric conversion rate is high, high beam quality, work life of more than 100,000 hours, no maintenance costs.
5.Universal ball screw and jagged shaped working platform, loading metal material fast and keeping stable feeding work. jagged platform fixing strip can fix material to reduce the spark splash when cutting.
6.The fiber laser cutting machine is adopted Japan's Panasonic servo motor and drive: improve the cutting speed and stability. Positioning accuracy: ≤ ± 0.05mm; maximum moving speed 90m / min, maximum effective cutting area 1500 * 3000mm. The servo system has excellent dynamic response acceleration characteristics for smooth operation, reliable, no maintenance.
7.Self-service refueling, alarm system, smoke device: Laser cutting machine tracks can automatically be refueled, always ensure track lubrication. laser cutting machine alarm system to remind the situation of the role of the machine. Smoke device can extract the smoke in the cutting process, to protect the working environment.
8.Rotary aids: the unique design with rotary auxiliaries can solve the technical problems for cutting pipe.
Ytterbium laser cutting system, automatic optimized cutting path calculation, industrial computer installed software;
Touch screen operation system to control the laser head (adjust the distance between the laser head and metal material); wireless control handle can control the laser cutting head movement trajectory.
2.The fiber laser cutting mchine is adopts Lasermach(USA) and PRECITEC(Germany ) automatic focus laser cutting head (metal sensor) :Laser cutting head nozzle contact metal plate surface, cutting head automatically move up and down, high sensitivity, good stability. No obvious spark phenomenon.
3.The metal laser cutter with 3HP high-power water chillers: adopts water cooling method to keep the laser head always work in constant temperature(plus or minus 5 degrees), to ensure the the stability and fast operation of the laser.
4.The fiber laser cutting mchine with Raycus 1000W (IPG1000W) fiber laser generator:photoelectric conversion rate is high, high beam quality, work life of more than 100,000 hours, no maintenance costs.
5.Universal ball screw and jagged shaped working platform, loading metal material fast and keeping stable feeding work. jagged platform fixing strip can fix material to reduce the spark splash when cutting.
6.The fiber laser cutting machine is adopted Japan's Panasonic servo motor and drive: improve the cutting speed and stability. Positioning accuracy: ≤ ± 0.05mm; maximum moving speed 90m / min, maximum effective cutting area 1500 * 3000mm. The servo system has excellent dynamic response acceleration characteristics for smooth operation, reliable, no maintenance.
7.Self-service refueling, alarm system, smoke device: Laser cutting machine tracks can automatically be refueled, always ensure track lubrication. laser cutting machine alarm system to remind the situation of the role of the machine. Smoke device can extract the smoke in the cutting process, to protect the working environment.
8.Rotary aids: the unique design with rotary auxiliaries can solve the technical problems for cutting pipe.
After-Sale Service:
1). Guarantee for the whole machine: 36 months
2). Providing professional service to customers, any call for technical help will be solved in 24 hours
3). Free training, free maintenance and free technical support within warranty period
4). We supply life-long free service in technical upgrading.
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China Perfect Laser!
1. The exact material you want to cut? (Stainless steel, carbon steel, mild steel, etc.)
2. The cutting depth on above materials?(max thickness, 3 mm, 5 mm, 7 mm, 15 mm....)
3. The working area you demand? (max dimension of material,width*length, 1500*3000 mm,...)
Need more information please feel free to contact us-Perfect Laser!---Right Now!!
Company Information:
Perfect laser Co. Ltd. (China) was founded in 1995, located in the core area of "China Optic Valley" - Wuhan city. Occupied with 3000 m2 ground, including R&D building and production area. It has more than 180 employees, most of them are with bachelor degree or even doctor degree. Executed by reliable quality and reasonable price, our products get favorable sales success and outstanding reputation not domestically in China but also popular in more than 180 countries such as USA, Italy, Korea, Singapore, Poland, Turkey, Sweden, Saudi Arabia to worldwide.
