Basic Info.
Name
Digital Cutting Machine
Model
Yc-1625A
Max. Cutting Speed
1200mm/S
No-Load Speed
1500mm/S
Multifunctional Head Cutting Tools
Oscillating Knife,Driven Rotary Cuttting Tool
Cutting Thickness
0.1-20mm
Cutting Accuracy
0.1mm
Transmission Interface
Ethernet
Motor
Panasonic Servo Motor
Transmission System
Smtycc Linear Rail and Rack
Fixed Mode
Vacuum Absorb
Rated Power
11kw or Others
Operation Properties
Online
Safety Device
Infrared Blocking Device,etc
Cutting Materials
Fabric, Leather, PVC and Other Flexible Materials
Transport Package
Wooden Cases.
Specification
2500*1600mm
Trademark
YUCHON
Origin
Shandong Jinan
Production Capacity
100 Sets/Month
Product Description
Product Description

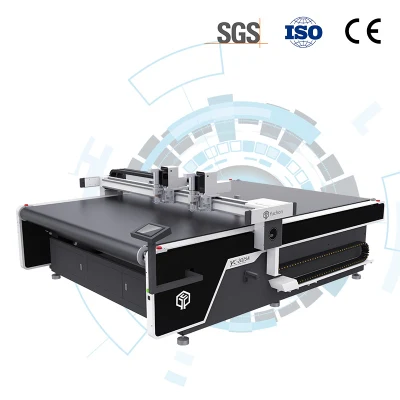

Model: YC-1625A Machine size can be customized
Brand: Yuchen
Applicable cutting materials:different kinds of materials, such as PVC, foam composite material, car seat, embroidery accessories, XPE, coiled mats, silicone, rubber, truck tarpaulin, gasket,etc
Application: widely used in automotive interior industry.
Functions: cutting(oscillating cutting tool).
Optional cutting tool: the cutting tool is optional according to customer's requirements, such as Oscillating cutting tool.
Features: Oscillating knife cutting, fast speed, high efficiency; saving material and labor, more convenient and easier to operate for user.
Parameter:
| Model | YC-1625L YC-1625A | YC-1630L YC-1630A | YC-1830L YC-1830A | Other sizes are customizable |
| Working area | 2500×1600mm | 3000×1600mm | 3000×1800mm | |
| Operation properties | Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime | |||
| Safety device | Infrared blocking device,Emergency stop button switch, Intelligent anti-collision device. sensitive response; safe and reliable | |||
| Max. cutting speed | 1200mm/s | |||
| No-load speed | 1500mm/s | |||
| Multifunctional head cutting tools | Oscillating knife cutting tool, Driven rotary cutting tool,Pneumatic cutting tool, Milling tool, Kiss cutting tool,V-cutting tool, Creasing wheel, Punching tool, Drawing pen etc. | |||
| Cutting thickness | 0.1-20mm ; 0.1-60mm0.1-20mm (subject to material) ; 0.1-60mm(Optional) | |||
| Cutting accuracy | ±0.1mm | |||
| Transmission interface | Ethernet | |||
| Transmission system | Panasonic Servo Motor/SMTYCC Linear rail and rack | |||
| Fixed mode | Vacuum absorb | |||
| Supply voltage | AC 220V 380V±10%,50HZ | |||
| Rated power | 11KW or others | |||
Features
Cutting Tools
Sample Show
Application: PVC, embroidery accessories, foam composite material, XPE, coiled mats, leather, silicone, rubber, truck tarpaulin, etc.
Warranty and Service
Pre-sale Service:
1. Free sample cutting/testing
Before you buy the machine, please send your samples or products CAD Graphics to our company in China, we will do cutting here and make video to show you the effect of cutting.
2. Customized machine design
We accept the customized machine, our company has an experienced professional design team, we can give you our professional suggestions according to your requirements and design a cost-effective machine for your needs.
3. Inquiries are typically answered within 24 hours.
4. Visit Factory
Our factory located in Jinan City,Shandong Province, China. Welcome to visit our factory to test the machine before you buy.
After-sales Service.
1. Machine warranty
the warranty is 12 months after shipment date. During the warranty period, the main
accessories (except the wearing parts) are replaced free of charge because of the quality
problems under the normal operation.
but due to improper operation, also well-solved, but not free of charge.
2. We have an experienced after-sales team and a complete after-sale system.
Factory trainning support, Video technical support, online support, Engineers available to
service machinery overseas.
Packaging & Shipping
*Standard plywood case packing for exporting, which can guarantee the machine safety during the long-distance transportation
*Delivery time:20days after received the full payment.
Company Information
Shandong Yuchen CNC Equipment Co., Ltd. was established in 2010 and is headquartered in 1005, Block B, Xinsheng Building, Xinluo Street, Lixia District, Jinan City, Shandong Province. It is an intelligent manufacturing company specializing in R&D, production, sales and service of flexible material cutting equipment.
After nearly 10 years of accumulation, the independent high-end brand "Yu Chen CNC" has won a good market reputation. The products have been widely used in the domestic flexible materials industry and exported to Europe, the United States, the Middle East, Southeast Asia and other countries and regions.
FAQ
1. Q: Are you a factory or Trading company?
A: We are a factory and the first manufacturer of vibrating knife cutting machines in North of
China with about 10 years experiences in this field.
2. Q: Can you customize the machine according to my needs?
A: Yes, we accept the customized machine, our company has an experiencedprofessional
design team, we can give you our professional suggestions according to your requirements
and design a cost-effective machine for your needs.
3. Q: What is the difference between your product and the laser cutting machine?
A: a. Our products are cut with vibrating blades, no laser, no pollution, and create a good
working environment for workers.
b. Blade cutting can ensure the edge of material cutting smooth without burning.
4. Q: Does your price have a discount for dealers?
A: Yes, we have a favorable policies for dealers. Please tell me your order quantity or annual
purchase quantity. The price will be adjusted according to the order quantity. For details,
please consult our sales staff.
5. Q: How is your after-sales policies?
A: a. 3 year free warranty
b.We have an experienced after-sales team 24h online service and a completafter-sale
system. Factory trainning support, Video technical support, online support, Engineers
available to service machinery overseas.
c. Inquiries are typically answered within 24 hours.
6. Q: Can you provide ODM and OEM services?
A: Yes, our R&D team with an average of 10 years experiences, the ODM&OEM service are
satisfied with our customers.
