Product Description

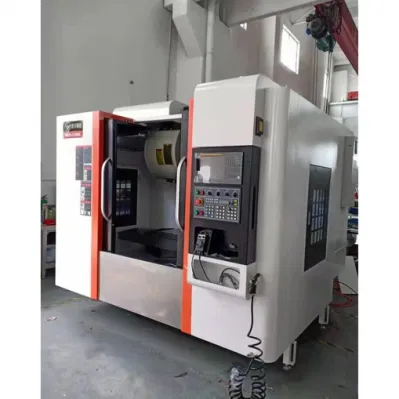

NCV-L855
L series machine X/Y two axis guide rail are both ball linear guide rail pair, sliding guide rail pair.
High rigidity construction, satisfying requirement of heavy cutting under the rapid operation of the machine tool. Coupling, bearing, spindle, ball screw, linear guide rail, tool magazine, play knife cylinder these key parts adopts Germany, Japan, Taiwan brand precision grade accessories to ensure its accuracy and quality. Modularization of various configurations to meet customers' different personal processing requirements: coolant through spindle (CTA); spring ring spindle; 8000rpm belt type spindle, 10000-15000rpm direct connection spindle. This series machining center is designed specially for part processing, accelerating the feed speed of the machine too, while taking into account the high rigid cutting requirements of the machine.
We also have other models : L850, L1060, L1167, L1270, L1370, L1580, L1690, L1890 which are suitable for medium and small and medium-sized metal part processing requirements.
You can choose different CNC control system with different price : Mitsubishi, TAIWAN SYNTEC, FANUC Oi-MF plus(5) or others.

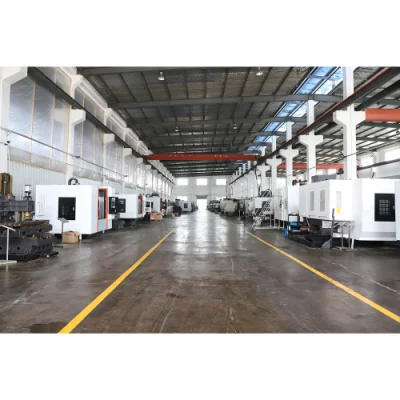

We are Jiangsu Zechuan Industrial Intelligent Equipment Co. Ltd. It is a high-tech enterprise engaged in the CNC machine tool application research and development, production, sales, installation and after-sale service for many years.
We are doing domestic general commercial trade and import and export trade. Our main productions are: vertical processing center, gantry processing center, horizontal processing center, CNC tilted lathe and other series. It can also customize special machines according to customers' need.
Our customers are covering hardware, mold, communication, IT industry, medical equipment, aerospace, auto parts and other industries.
Our main partners are:
- BEIJING ZHICHUANG UNITED TECHNOLOGY CO., LTD. has the relevant qualification issued by the State Administration of Science, Technology and Industry for National Defense and is an equipment contractor issued by the General Equipment Department. It is engaged in the R&D and production of hot-forming titanium alloy components and hot-forming superalloy components
- Jiangsu Shangqi Group, a forklift maker, the supplier of KION Baoli (Jiangsu) Forklift Co., Ltd, a member of KION Group in Germany
- Weichai Holding Group Co., Ltd. produces engines, new energy motor components
- Suzhou Inovance Technology Co., Ltd. is engaged in industrial control, motor manufacturing, industrial robot manufacturing and application
- Zhejiang Geely Holding Group is engaged in the research and development of auto parts, manufacturing, among which the new energy motor is also produced there
- WUXI YINGFENG AUTO PARTS MANUFACTURING CO., Ltd. is engaged in the application of automotive engine, transmission, automotive diesel pump, vibration damping system, and engaged in aluminum alloy parts for motor, engine, high-speed locomotive motor industry, etc
There are so many other partners, I will not list them all.
We hope you are our next and forever partner.
Why Choose Zechuan machine
1) Excellent quality, competitive price, prompt delivery, on-time service and good reputation.
2) Fast sample delivery
3) Low minimum order
4) Fast shipment in 15~20 days on receipt of your payment.
5) We handle all the components needed for utility-connected systems, or for powering independent homes and remote industrial sites.
6) We offer knowledgeable tech support before and after the sale.
The machine tool has the functions of drilling, boring, milling, expanding, reaming, rigid tapping, linear interpolation, arc interpolation, spiral interpolation, three-coordinate linkage, etc. Mainly carry out numerical control processing of various basic large parts, plate parts, disc parts, shell parts, molds and other precision parts. It is suitable for aerospace, shipbuilding, power generation, industry, heavy machinery, locomotives, machine tools, textile machinery, printing machinery, mold manufacturing and other industries.
The fixed beam type gantry frame structure is adopted, the bed is fixed, and the double columns are bolted to the two sides of the bed. The worktable moves on the X axis on the bed, the spindle box moves in the Z direction on the saddle, and the slide saddle and the spindle box move in the Y direction on the beam.
The main large parts of the machine tool: bed, worktable, column, beam, saddle, and headstock are all made of high-strength cast iron and resin sand. These large parts are optimized by three-dimensional computer software. The layout of the ribs is reasonable and has perfect The heat treatment process is used to eliminate residual stress and ensure that the whole machine has sufficient strength, rigidity and high stability.
OUR CUSTOM SERVICE
1.Our company will be responsible for the 12-month free warranty service for the machine tools and accessories purchased in this project. The warranty period shall be calculated from the day when the representatives of both parties sign the equipment acceptance form.
2.Out of warranty: Lifetime service. After the warranty period, our company will provide free technical assistance, and provide customers with paid maintenance services, including fault repair and replacement of original parts. Costs will be charged for parts replacement, and related labor costs. This will be negotiated by both parties as appropriate.
3.Our company provides video guidance for equipment installation. If the customer needs our company to arrange testing staff, the travel expenses will be borne by the customer.
| Model | NCV-L855 | |||
| Travel | X axis travel | mm | 800 | |
| Y axis travel | mm | 550 | ||
| Z axis travel | mm | 550 | ||
| Distance between spindle and table | mm | 105-655 | ||
| Distance between spindle and column | mm | 600 | ||
| Table | Size | mm | 550*1000 | |
| MAX Load | kg | 500 | ||
| T slot size | 5-18*90 | |||
| Spindle | Taper | BT40 | ||
| diameter | Φ150 | |||
| speed | r/min | 8000 | ||
| Three axis | Motor power | kw | 2/2/3 | |
| Motor rate | KW | 7.5/11 | ||
| Cutting feed | m/min | 10 | ||
| Rapid feed | m/min | 36/36/20 | ||
| Arm type Tool magazine | Tool capacity | T | 24 | |
| Maximum length/ weight of tool | mm/kg | 300/8 | ||
| Maximum diameter of tool (no tool) | φ78/φ120 | |||
| Tool change time (T-T) | s | 2.5 | ||
| Accuracy | Positioning accuracy (X/Y/Z) | mm | 0.010 | |
| Repeat positioning accuracy (X/Y/Z) | mm | 0.006 | ||
| Other | Dimension | mm | 2700*2500*3150 | |
| Power capacity | KVA | 15 | ||
| Weight | kg | 6500 | ||
Payment Term
| Payment Terms | T/T | EXW | 30% T/T in advance, the balance to be paid before dispatch |
| FOB | |||
| CIF | 30% T/T in advance, the balance to be paid against the copy of B/L | ||
| CFR (C&F) | |||
| L/C | Irrevocable L/C at sight could be accepted if amount above US $50,000.00 | ||
| Delivery Time | 7 to 10 working days after receiving advanced payment | ||
